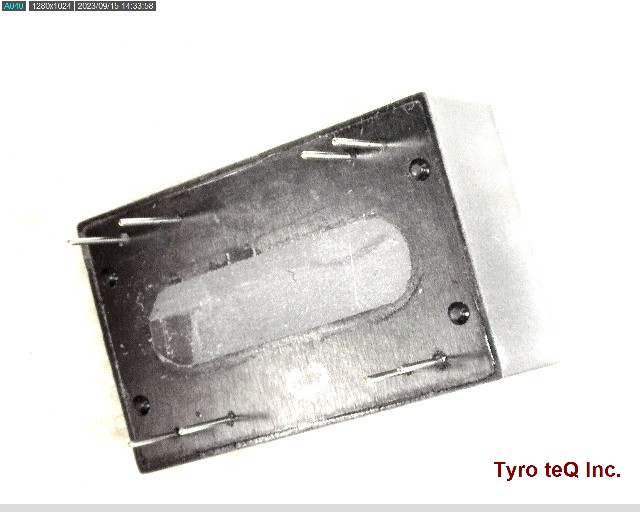

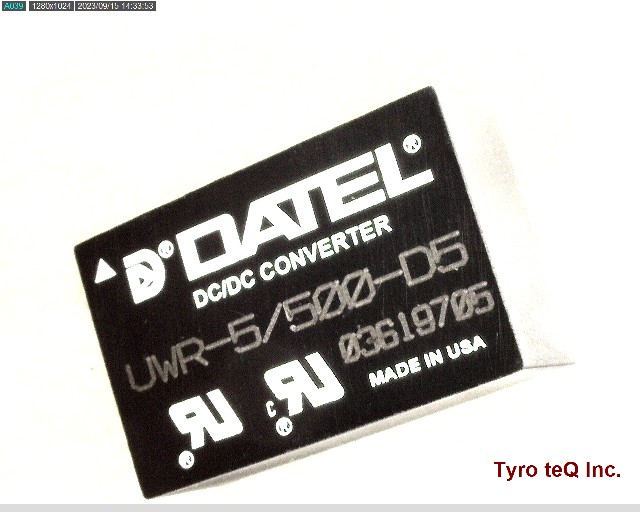

UWR-5/500-D5

Name: UWR-5/500-D5
Brand: DATEL
SKU: 400067236-0000-0000-0000

UWR-5/500-D5 - DATEL の商品詳細ページです。

２営業日以内に回答いたします

UWR-5/500-D5 の詳細情報

型番	UWR-5/500-D5
メーカー	DATEL
Analog IC - Other Type	DC-DC REGULATED POWER SUPPLY MODULE
Approvals	UL, CSA V
Efficiency (Main Output)	70 %
Input Voltage-Max	9 V
Input Voltage-Min	4.5 V
Input Voltage-Nom	5 V
JESD-30 Code	R-PDMA-P8
JESD-609 Code	e0
Length	31.75 mm
Line Regulation-Max	0.2 %
Load Regulation-Max	0.5 %
Number of Functions	1
Number of Outputs	1
Number of Terminals	8
Operating Temperature-Max	75 Cel
Operating Temperature-Min	-25 Cel
Output Current-Max	0.5 A
Output Voltage-Max	5.05 V
Output Voltage-Min	4.95 V
Output Voltage-Nom	5 V
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8/20,.6
Package Shape	RECTANGULAR
Package Style	MICROELECTRONIC ASSEMBLY Meter
Protection(s)	CURRENT; POLARITY V
Qualification Status	Not Qualified
Seated Height-Max	11.43 mm
Sub Category	Other Analog ICs
Surface Mount	NO
Technology	HYBRID
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	GOLD
Terminal Form	PIN/PEG
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Total Power Output-Max	2.5 W
Trim/Adjustable Output	NO V
Width	20.32 mm
