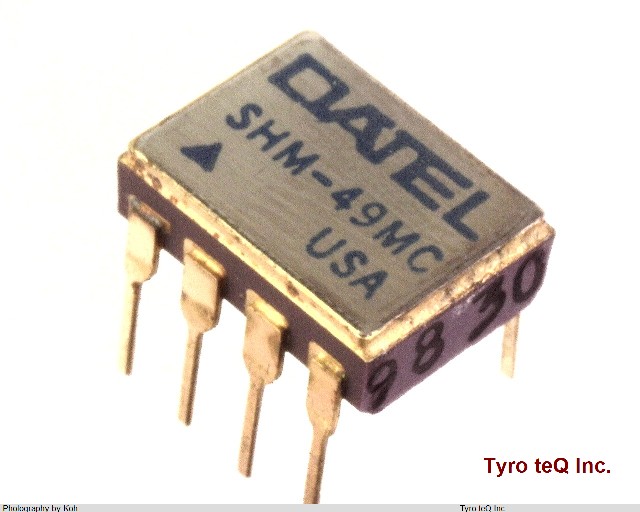

SHM-49MC

Name: SHM-49MC
Brand: DATEL
SKU: 290445351-0000-0000-0000

SHM-49MC - DATEL の商品詳細ページです。

２営業日以内に回答いたします

SHM-49MC の詳細情報

型番	SHM-49MC
メーカー	DATEL
Acquisition Time-Max	0.16 us
Acquisition Time-Nom	0.2 us
Amplifier Type	SAMPLE AND HOLD CIRCUIT
Analog Input Voltage-Max	11.5 V
Analog Input Voltage-Min	-11.5 V
Droop Rate-Max	30 V/s
JESD-30 Code	R-CDIP-T8
JESD-609 Code	e0
Neg Supply Voltage Limit-Max	-18 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	CERAMIC
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Power Supplies	5,+-15 V
Qualification Status	Not Qualified
Sample-and-Hold/Track-and-Hold	SAMPLE
Seated Height-Max	4.699 mm
Sub Category	Sample and Hold Circuit
Supply Current-Max	13.5 mA
Supply Voltage Limit-Max	18 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	NO
Technology	FET
Temperature Grade	COMMERCIAL
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	7.62 mm
