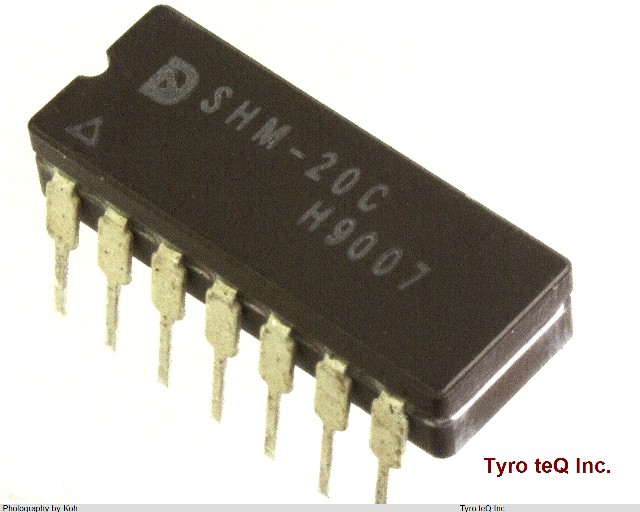

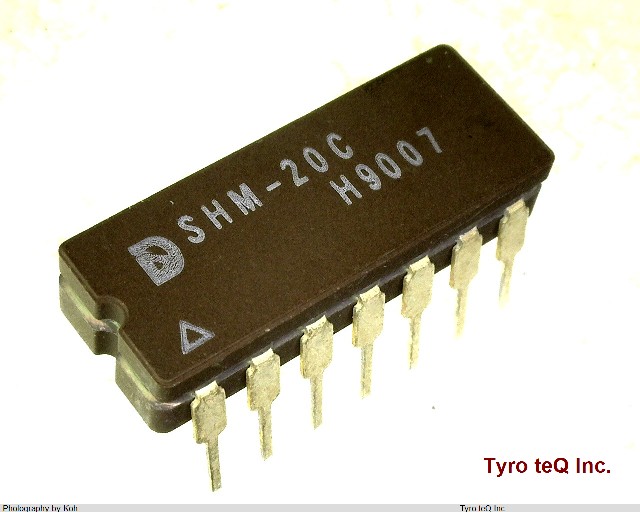

SHM-20C

Name: SHM-20C
Brand: DATEL
SKU: 290457937-0000-0000-0000

SHM-20C - DATEL の商品詳細ページです。

２営業日以内に回答いたします

SHM-20C の詳細情報

型番	SHM-20C
メーカー	DATEL
Acquisition Time-Nom	1 us
Amplifier Type	SAMPLE AND HOLD CIRCUIT
Analog Input Voltage-Max	10 V
Analog Input Voltage-Min	-10 V
JESD-30 Code	R-GDIP-T14
JESD-609 Code	e0
Length	19.43 mm
Neg Supply Voltage Limit-Max	-20 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Number of Functions	1
Number of Terminals	14
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	CERAMIC, GLASS-SEALED
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Power Supplies	+-15 V
Qualification Status	Not Qualified
Sample-and-Hold/Track-and-Hold	SAMPLE
Seated Height-Max	5.08 mm
Sub Category	Sample and Hold Circuits
Supply Voltage Limit-Max	20 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	NO
Temperature Grade	COMMERCIAL
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	7.62 mm
