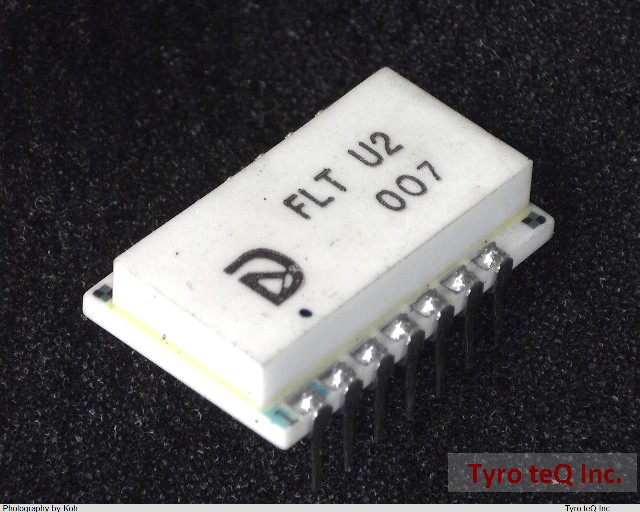

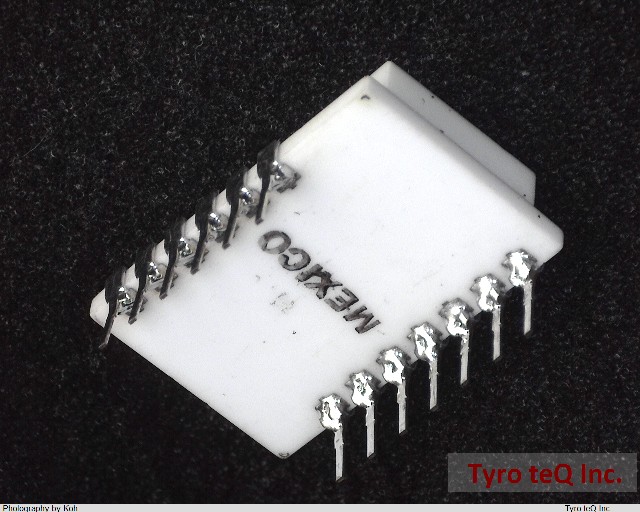

FLT-U2
1
-
- 個
２営業日以内に回答いたします
FLT-U2 の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | FLT-U2 |
|---|---|
| メーカー | DATEL |
| Active Filter Type | CONTINUOUS TIME FILTER |
| Center or Cutoff Freq Rng-Max | 200 kHz |
| Center or Cutoff Freq Rng-Min | 1.0E-6 kHz |
| JESD-30 Code | R-CDIP-T13 |
| JESD-609 Code | e0 |
| Length | 22.99 mm |
| Neg Supply Voltage-Max (Vsup) | -18 V |
| Neg Supply Voltage-Min (Vsup) | -5 V |
| Neg Supply Voltage-Nom (Vsup) | -15 V |
| Number of Functions | 1 |
| Number of Terminals | 13 |
| Operating Temperature-Max | 70 Cel |
| Operating Temperature-Min | -55 Cel |
| Order | 2ND |
| Package Body Material | CERAMIC, METAL-SEALED COFIRED |
| Package Code | DIP |
| Package Equivalence Code | DIP16,.6 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE Meter |
| Poles and Zeros | 2 AND 0 |
| Power Supplies | +-15 V |
| Qualification Status | Not Qualified |
| Response | UNIVERSAL |
| Seated Height-Max | 7.09 mm |
| Sub Category | Active Filters |
| Supply Current-Max (Isup) | 11.5 mA |
| Supply Voltage-Max (Vsup) | 18 V |
| Supply Voltage-Min (Vsup) | 5 V |
| Supply Voltage-Nom (Vsup) | 15 V |
| Surface Mount | NO |
| Technology | HYBRID |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Transfer Characteristics | RESISTOR PROGRAMMABLE |
| Width | 15.24 mm |
| 会社名称 | Murata Power Solutions |
|---|---|
| 設立 | 1970 |
| 所在地 | 11 Cabot Blvd, Suite 200 Mansfield, MA 02048 USA |
| URL | http://www.datel.com/ |
