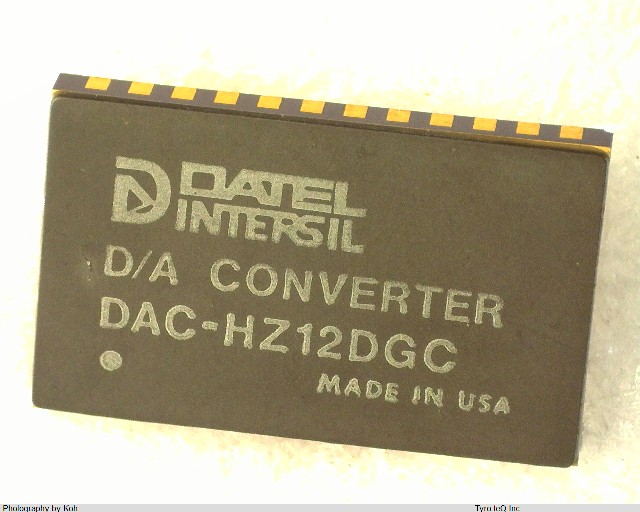

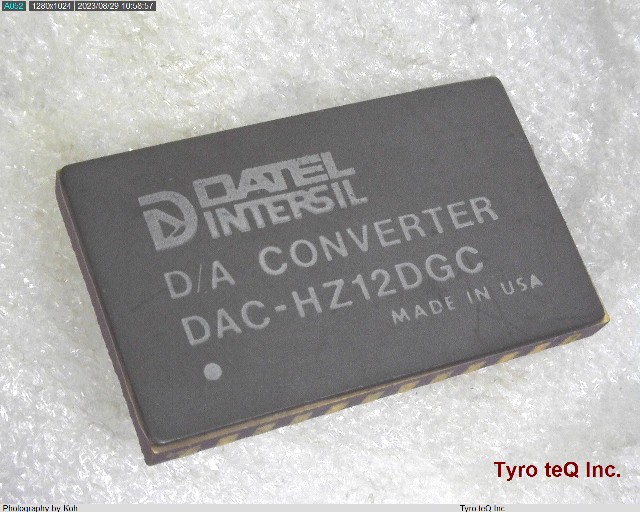

DAC-HZ12DGC

Name: DAC-HZ12DGC
Brand: DATEL
SKU: 140086159-0000-0000-0000

DAC-HZ12DGC - DATEL の商品詳細ページです。

２営業日以内に回答いたします

DAC-HZ12DGC の詳細情報

型番	DAC-HZ12DGC
メーカー	DATEL
Analog Output Voltage-Max	10 V
Analog Output Voltage-Min	-10 V
Converter Type	D/A CONVERTER
Input Bit Code	COMPLEMENTARY BINARY CODED DECIMAL
Input Format	PARALLEL, WORD
JESD-30 Code	R-CDIP-T24
JESD-609 Code	e0
Linearity Error-Max (EL)	0.0061 %
Negative Supply Voltage-Nom	-15 V
Number of Bits	12
Number of Functions	1
Number of Terminals	24
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	CERAMIC
Package Code	DIP
Package Equivalence Code	DIP24,.6
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Power Supplies	+-15 V
Qualification Status	Not Qualified
Seated Height-Max	5.969 mm
Settling Time-Max	3 us
Settling Time-Nom (tstl)	3 us
Sub Category	Other Converters
Supply Voltage-Nom	15 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	GOLD
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	15.24 mm
