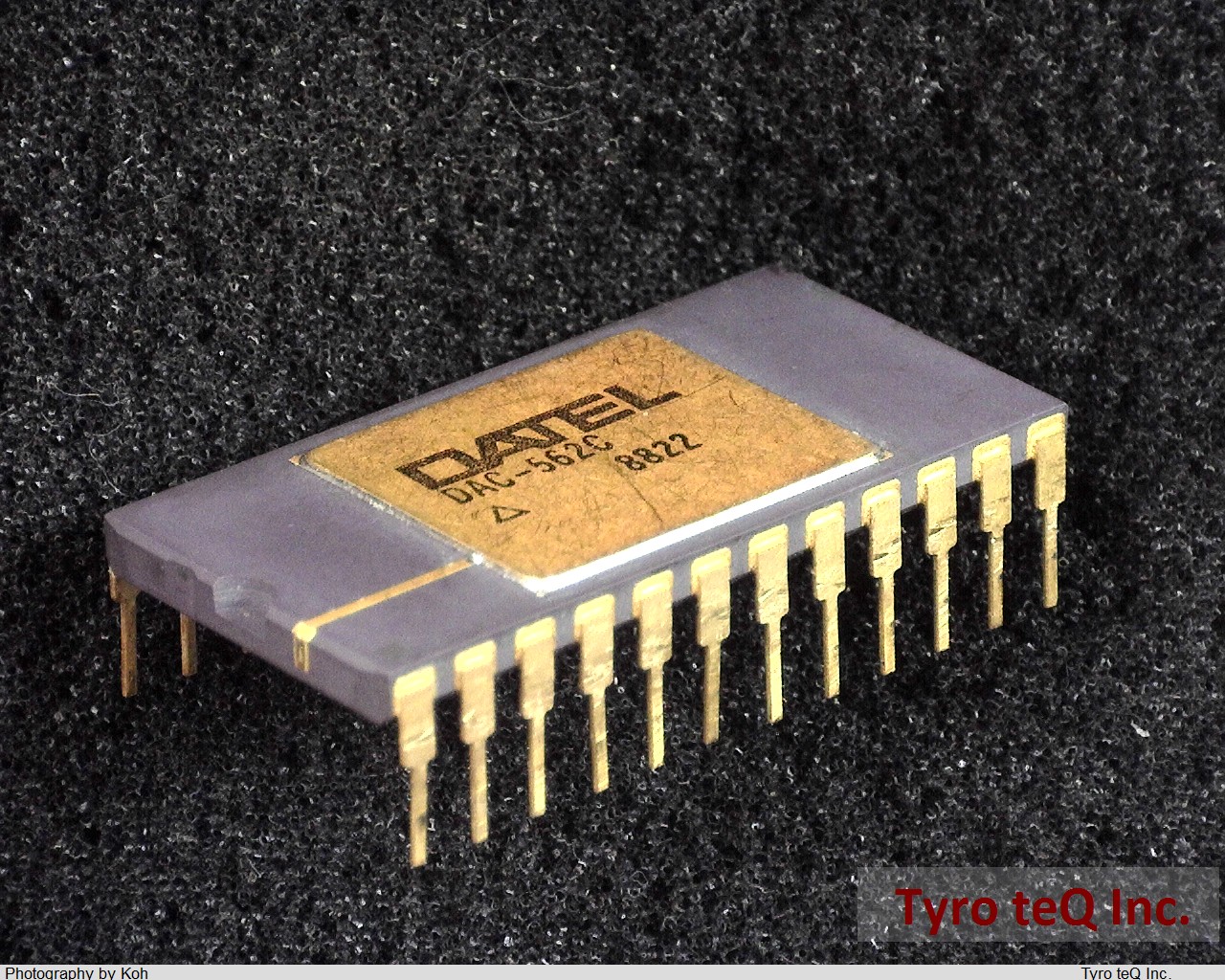

DAC-562C
1
-
- 個
２営業日以内に回答いたします
DAC-562C の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | DAC-562C |
|---|---|
| メーカー | DATEL |
| Converter Type | D/A CONVERTER |
| Input Bit Code | BINARY, OFFSET BINARY |
| JESD-30 Code | R-XDIP-T24 |
| JESD-609 Code | e0 |
| Linearity Error-Max (EL) | 0.024 % |
| Number of Bits | 12 |
| Number of Functions | 1 |
| Number of Terminals | 24 |
| Operating Temperature-Max | 70 Cel |
| Operating Temperature-Min | 0 Cel |
| Package Body Material | CERAMIC |
| Package Code | DIP |
| Package Equivalence Code | DIP24,.6 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE Meter |
| Power Supplies | 5,-15 V |
| Qualification Status | Not Qualified |
| Settling Time-Max | 0.4 us |
| Sub Category | Other Converters |
| Supply Current-Max | 38 mA |
| Surface Mount | NO |
| Technology | BIPOLAR |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| 会社名称 | Murata Power Solutions |
|---|---|
| 設立 | 1970 |
| 所在地 | 11 Cabot Blvd, Suite 200 Mansfield, MA 02048 USA |
| URL | http://www.datel.com/ |
