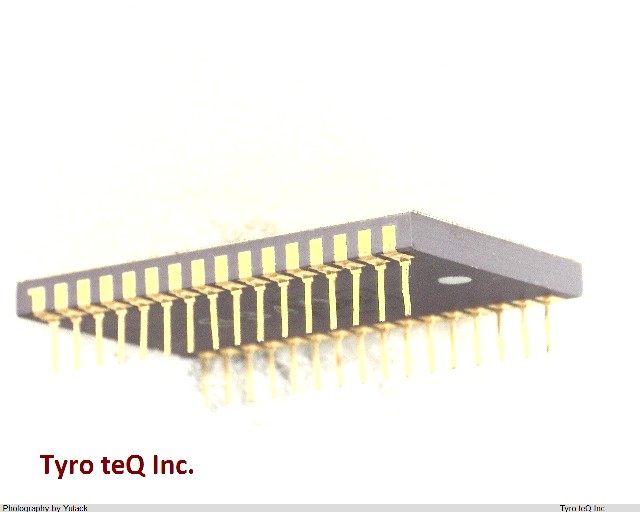

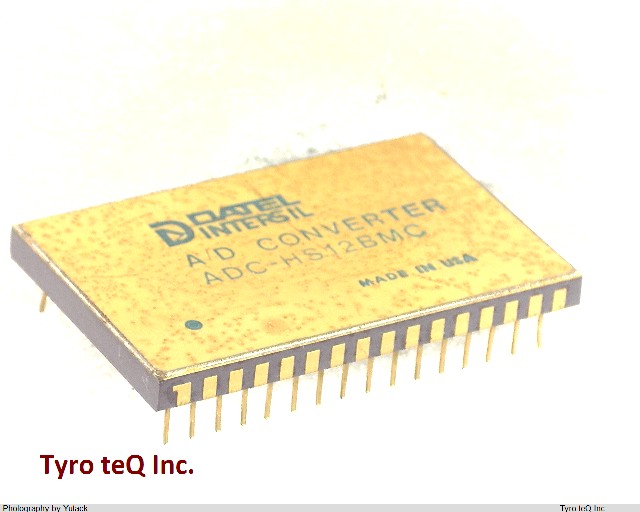

ADC-HS12BMC データシート

Name: ADC-HS12BMC
Brand: DATEL
SKU: 110096045-0000-0000-0000

ADC-HS12BMC - DATEL の商品詳細ページです。

２営業日以内に回答いたします

ADC-HS12BMC の詳細情報

型番	ADC-HS12BMC
メーカー	DATEL
データシート
Analog Input Voltage-Max	10 V
Analog Input Voltage-Min	-10 V
Conversion Time-Max	9 us
Converter Type	ADC, SUCCESSIVE APPROXIMATION
JESD-30 Code	R-CDIP-P32
JESD-609 Code	e0
Length	43.305 mm
Linearity Error-Max (EL)	0.0122 %
Moisture Sensitivity Level	1
Negative Supply Voltage-Nom	-15 V
Number of Analog In Channels	1
Number of Bits	12
Number of Functions	1
Number of Terminals	32
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Bit Code	COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY
Output Format	PARALLEL, WORD
Package Body Material	CERAMIC, METAL-SEALED COFIRED
Package Code	DIP
Package Equivalence Code	DIP32,.9
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5,+-15 V
Qualification Status	Not Qualified
Sample-and-Hold/Track-and-Hold	SAMPLE
Seated Height-Max	4.9 mm
Sub Category	Analog to Digital Converters
Supply Voltage-Nom	15 V
Surface Mount	NO
Technology	HYBRID
Temperature Grade	COMMERCIAL
Terminal Finish	TIN LEAD
Terminal Form	PIN/PEG
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	15.24 mm
