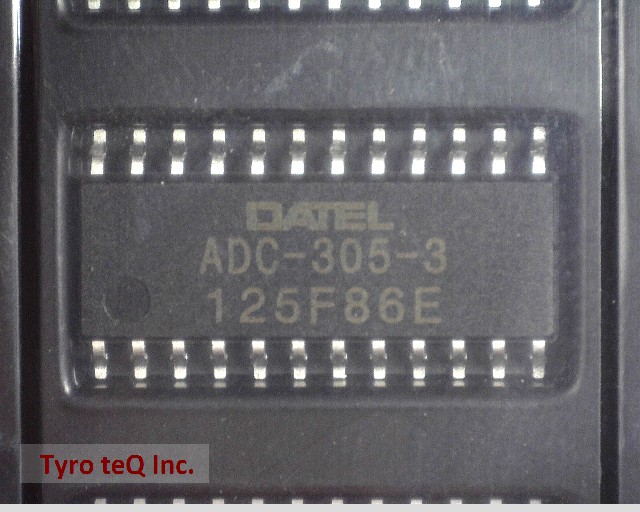

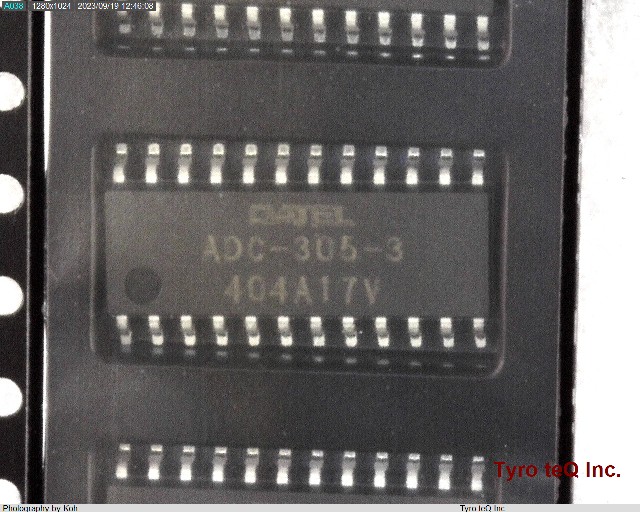

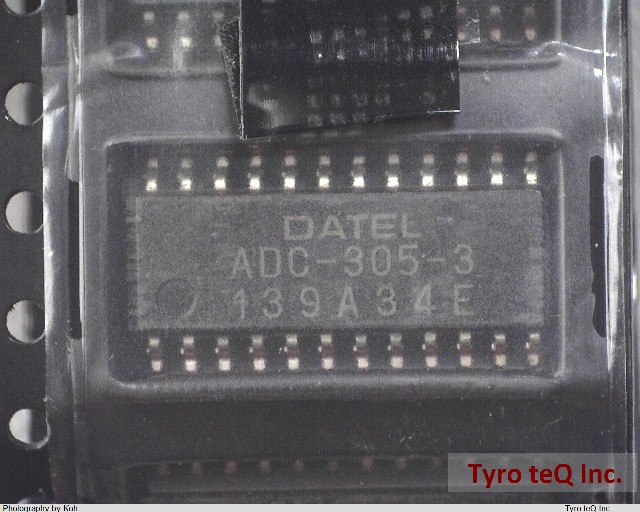

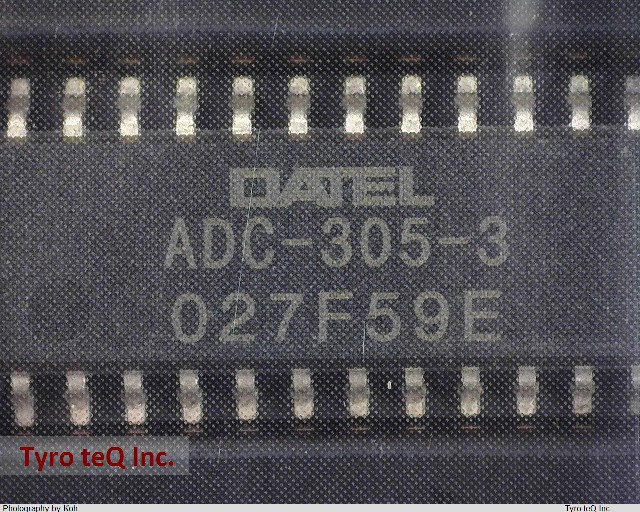

ADC-305-3

Name: ADC-305-3
Brand: DATEL
SKU: 110096037-0000-0000-0000

ADC-305-3 - DATEL の商品詳細ページです。

２営業日以内に回答いたします

ADC-305-3 の詳細情報

型番	ADC-305-3
メーカー	DATEL
Analog Input Voltage-Max	2.6 V
Analog Input Voltage-Min	0.6 V
Converter Type	ADC, FLASH METHOD
JESD-30 Code	R-PDSO-G24
JESD-609 Code	e0
Length	15.15 mm
Linearity Error-Max (EL)	0.5078 %
Number of Analog In Channels	1
Number of Bits	8
Number of Functions	1
Number of Terminals	24
Operating Temperature-Max	75 Cel
Operating Temperature-Min	-20 Cel
Output Bit Code	BINARY
Output Format	PARALLEL, 8 BITS
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP24,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Power Supplies	5 V
Qualification Status	Not Qualified
Sample Rate	20 MHz
Sample-and-Hold/Track-and-Hold	SAMPLE
Seated Height-Max	2.25 mm
Sub Category	Analog to Digital Converters
Supply Current-Max	17 mA
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	TIN LEAD
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Width	5.4 mm
