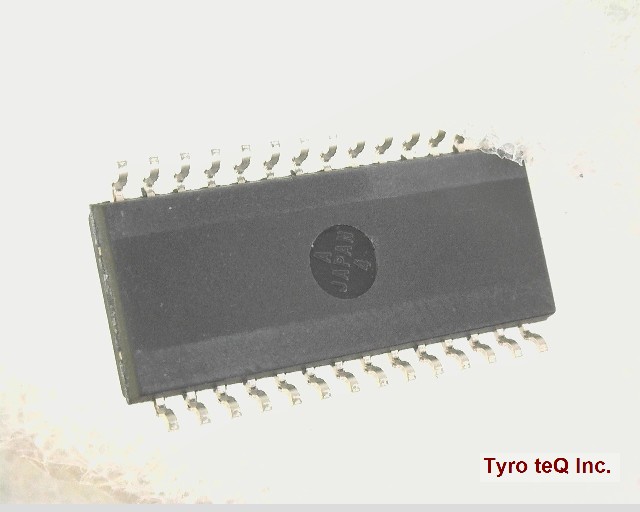

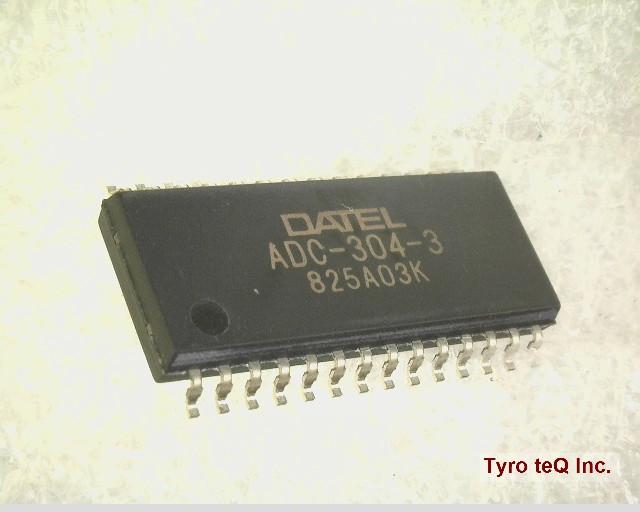

ADC-304-3

Name: ADC-304-3
Brand: DATEL
SKU: 110208917-0000-0000-0000

ADC-304-3 - DATEL の商品詳細ページです。

２営業日以内に回答いたします

ADC-304-3 の詳細情報

型番	ADC-304-3
メーカー	DATEL
Analog Input Voltage-Max	5 V
Analog Input Voltage-Min	3 V
Converter Type	ADC, FLASH METHOD
JESD-30 Code	R-PDSO-G28
JESD-609 Code	e0
Length	18.95 mm
Linearity Error-Max (EL)	0.1953 %
Negative Supply Voltage-Nom	-5.2 V
Number of Analog In Channels	1
Number of Bits	8
Number of Functions	1
Number of Terminals	28
Operating Temperature-Max	75 Cel
Operating Temperature-Min	-20 Cel
Output Bit Code	BINARY, 2'S COMPLEMENT BINARY, COMPLEMENTARY BINARY, COMPLEMENTARY 2'S COMPLEMENT
Output Format	PARALLEL, 8 BITS
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP28,.4
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Power Supplies	5,GND/-5.2 V
Qualification Status	Not Qualified
Sample Rate	20 MHz
Sample-and-Hold/Track-and-Hold	SAMPLE
Seated Height-Max	2.58 mm
Sub Category	Analog to Digital Converters
Supply Voltage-Nom	5 V
Surface Mount	YES
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	TIN LEAD
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Width	7.7 mm
