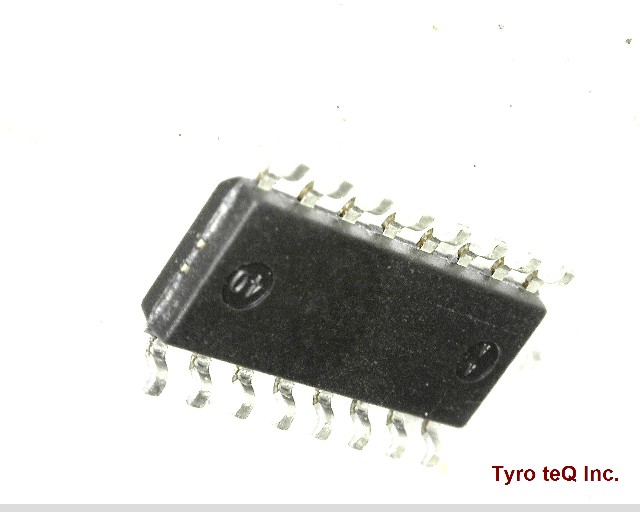

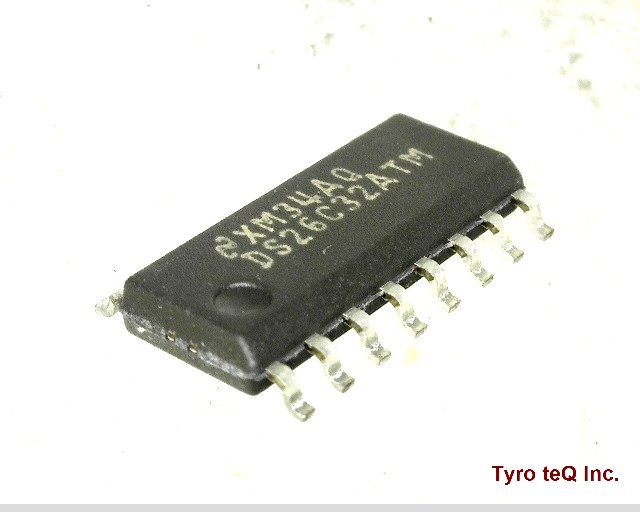

DS26C32ATM Dallas

DS26C32ATM - DALLAS の商品詳細ページです。

1
No Image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

DS26C32ATM の詳細情報

  • 仕様・詳細
  • メーカー情報
型番DS26C32ATM
メーカーDALLAS
Differential Output NO
Input Characteristics DIFFERENTIAL SCHMITT TRIGGER
Interface IC Type LINE RECEIVER
Interface Standard EIA-422; EIA-423; FED STD 1020; FED STD 1030
JESD-30 Code R-PDSO-G16
JESD-609 Code e0
Length 9.9 mm
Moisture Sensitivity Level 1
Number of Functions 4
Number of Terminals 16
Operating Temperature-Max 85 Cel
Operating Temperature-Min -40 Cel
Output Characteristics 3-STATE
Output Low Current-Max 0.006 Amp
Output Polarity INVERTED
Package Body Material PLASTIC/EPOXY
Package Code DIE
Package Equivalence Code DIE OR CHIP
Package Shape RECTANGULAR
Package Style SMALL OUTLINE Meter
Peak Reflow Temperature (Cel) 235
Power Supplies 5 V
Qualification Status Not Qualified
Receive Delay-Max 30 ns
Receiver Number of Bits 4
Seated Height-Max 1.75 mm
Sub Category Line Driver or Receivers
Supply Current-Max 23 mA
Supply Voltage-Max 5.5 V
Supply Voltage-Min 4.5 V
Supply Voltage-Nom 5 V
Supply Voltage1-Max 5.5 V
Supply Voltage1-Min 4.5 V
Supply Voltage1-Nom 5 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish MATTE TIN
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 20
Transmit Delay-Max 35 ns
Width 3.9 mm
会社名称Maxim Integrated Products
URLhttp://japan.maxim-ic.com/
