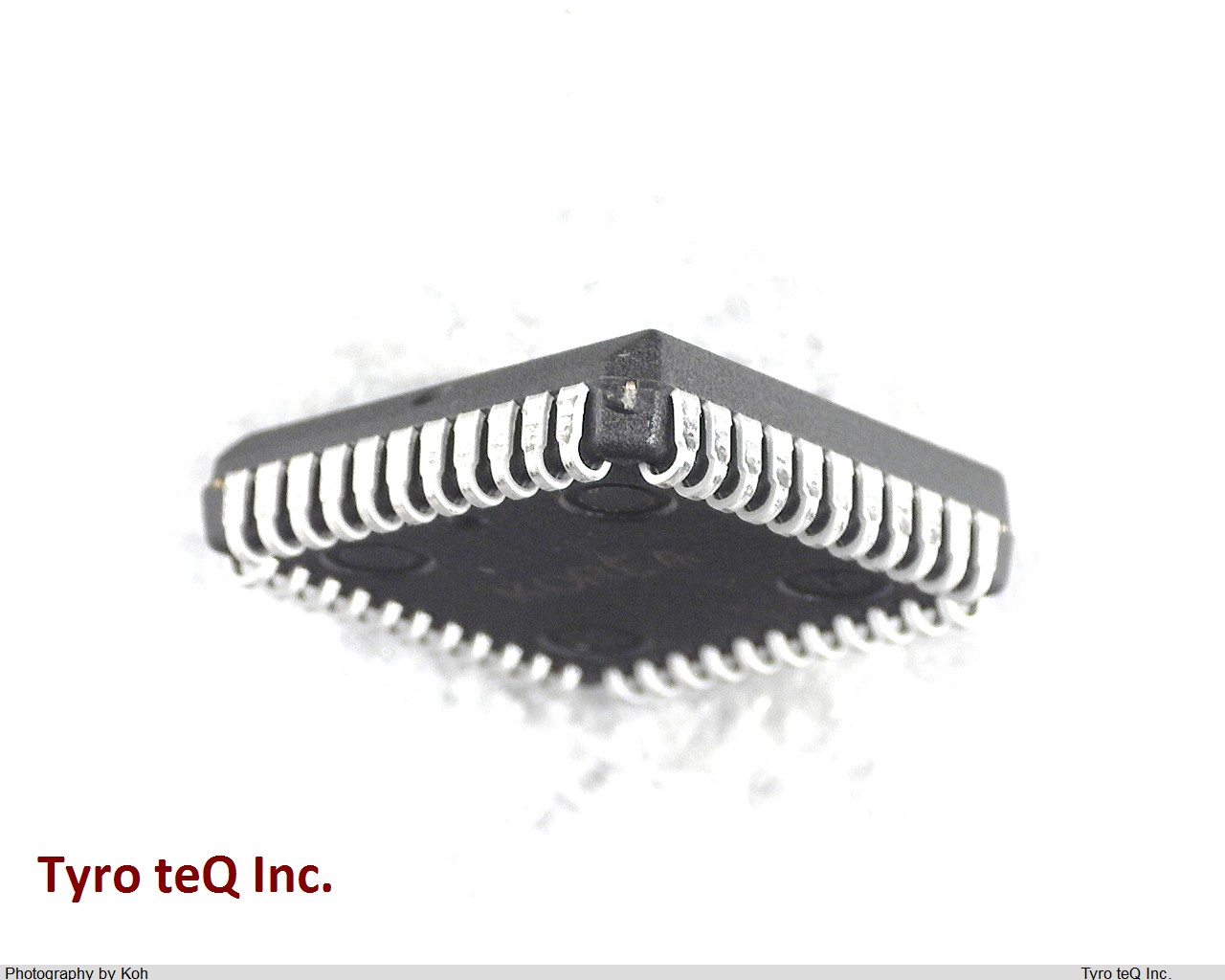

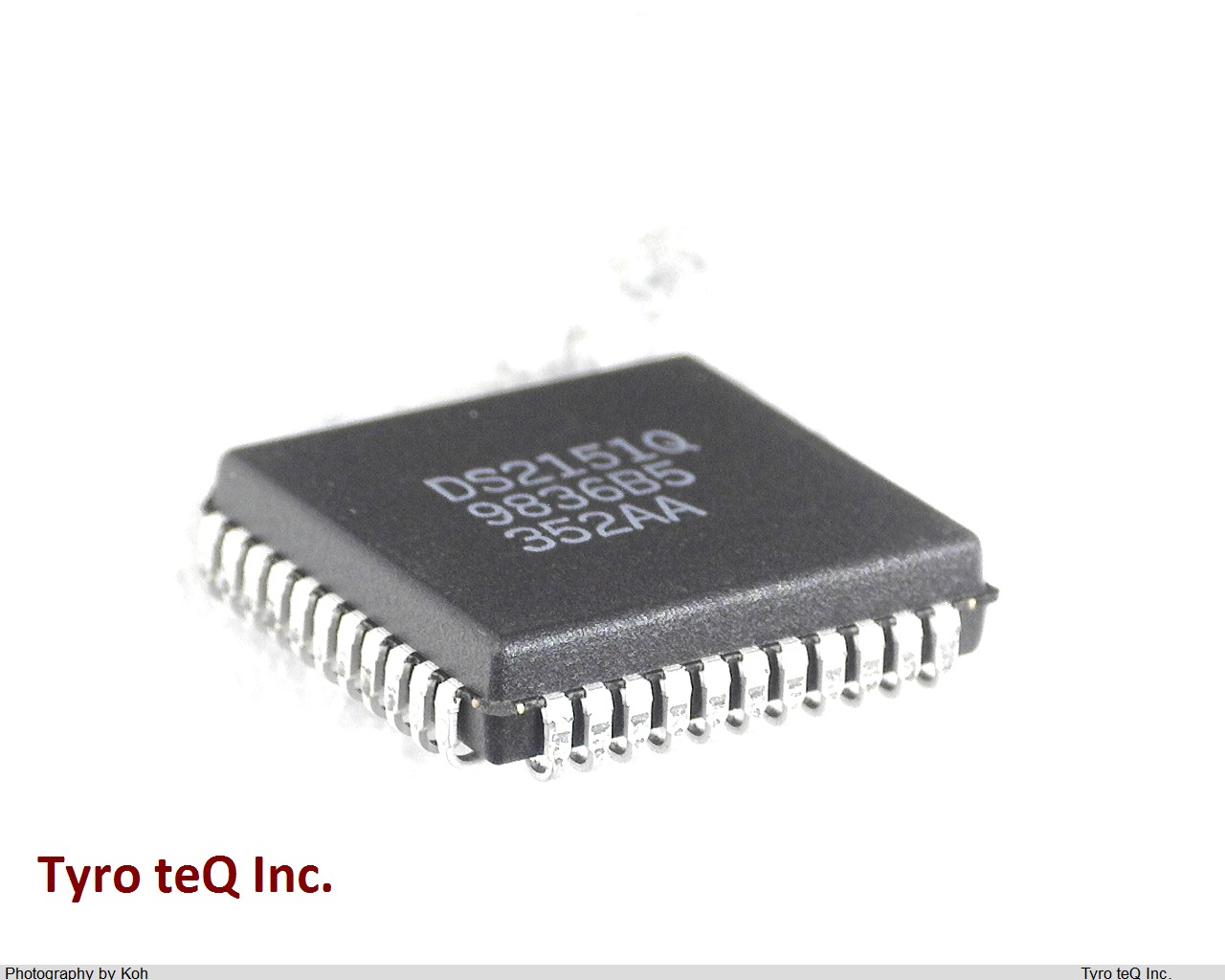

DS2151QB
1
-
- 個
２営業日以内に回答いたします
DS2151QB の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | DS2151QB |
|---|---|
| メーカー | DALLAS |
| Carrier Type | T-1(DS1) |
| JESD-30 Code | S-PQCC-J44 |
| JESD-609 Code | e0 |
| Length | 16.585 mm |
| Moisture Sensitivity Level | 3 |
| Number of Functions | 1 |
| Number of Terminals | 44 |
| Operating Temperature-Max | 70 Cel |
| Operating Temperature-Min | 0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | QCCJ |
| Package Equivalence Code | LDCC44,.7SQ |
| Package Shape | SQUARE |
| Package Style | CHIP CARRIER Meter |
| Peak Reflow Temperature (Cel) | 245 |
| Power Supplies | 5 V |
| Qualification Status | Not Qualified |
| Seated Height-Max | 4.572 mm |
| Sub Category | Other Telecom ICs |
| Supply Voltage-Nom | 5 V |
| Surface Mount | YES |
| Technology | CMOS |
| Telecom IC Type | FRAMER |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | MATTE TIN |
| Terminal Form | J BEND |
| Terminal Pitch | 1.27 mm |
| Terminal Position | QUAD |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Width | 16.585 mm |
| 会社名称 | Maxim Integrated Products |
|---|---|
| URL | http://japan.maxim-ic.com/ |
