DS1307N の詳細情報

  • 仕様・詳細
  • メーカー情報

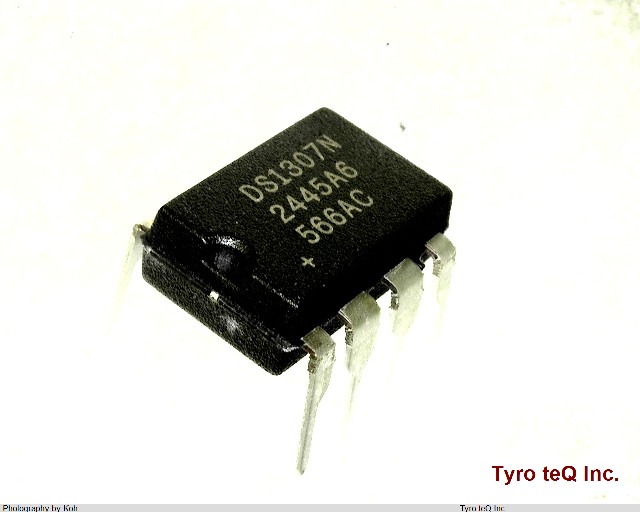

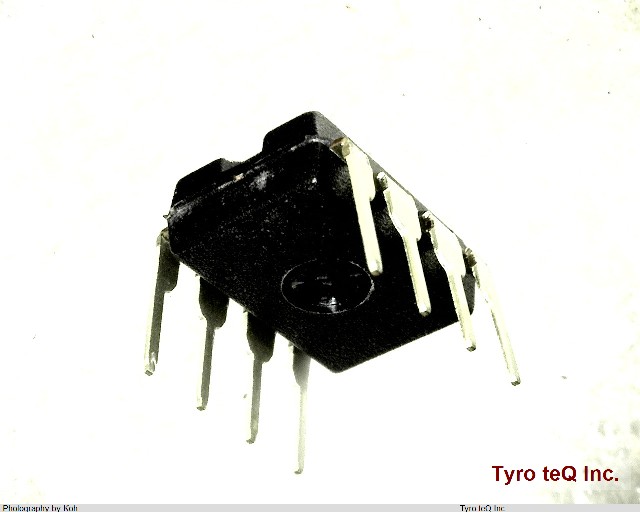

型番DS1307N
メーカーDALLAS
データシートProduct_list_pdf
Clock Frequency-Max 0.032 MHz
Information Access Method I2C
Interrupt Capability N
JESD-30 Code R-PDIP-T8
JESD-609 Code e0
Length 9.375 mm
Moisture Sensitivity Level 1
Number of Terminals 8
Number of Timers 1
On Chip Data RAM Width 8
Operating Temperature-Max 85 Cel
Operating Temperature-Min -40 Cel
Output Clock Frequency-Max 0.032 MHz
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP8,.3
Package Shape RECTANGULAR
Package Style IN-LINE Meter
Peak Reflow Temperature (Cel) 240
Power Supplies 5 V
Qualification Status Not Qualified
RAM (words) 56
Seated Height-Max 4.572 mm
Sub Category Timer or RTC
Supply Voltage-Max 5.5 V
Supply Voltage-Min 4.5 V
Supply Voltage-Nom 5 V
Surface Mount NO
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish MATTE TIN
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time-Min SECONDS
Time@Peak Reflow Temperature-Max (s) 20
Volatile YES
Width 7.62 mm
uPs/uCs/Peripheral ICs Type TIMER, REAL TIME CLOCK
会社名称Maxim Integrated Products
URLhttp://japan.maxim-ic.com/
