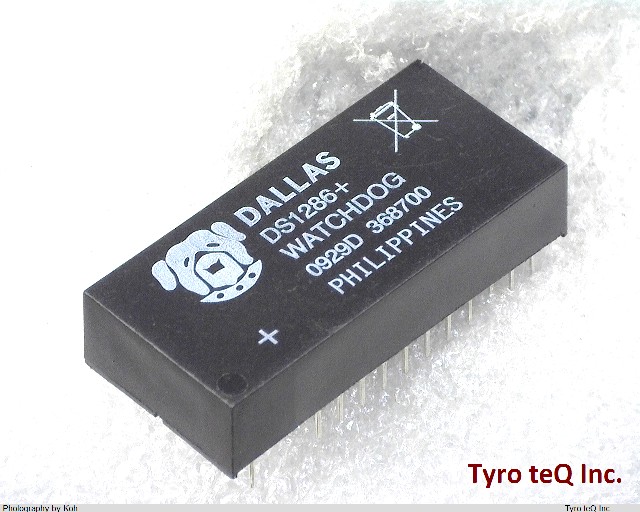

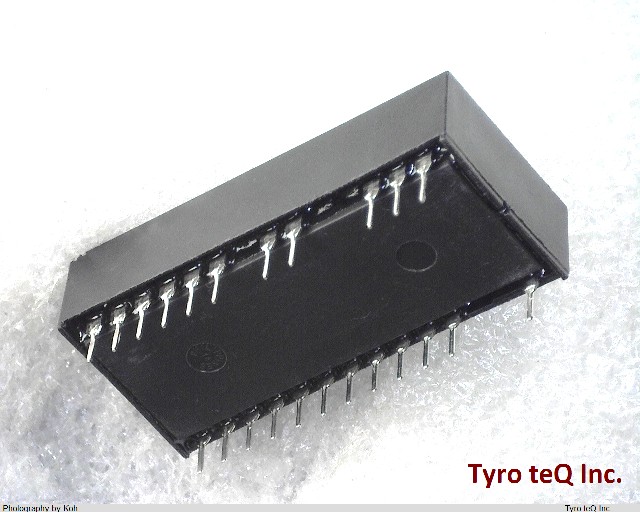

DS1286 データシート

Name: DS1286
Brand: DALLAS
SKU: 140004084-0000-0000-0000

DS1286 - DALLAS の商品詳細ページです。

２営業日以内に回答いたします

DS1286 の詳細情報

型番	DS1286
メーカー	DALLAS
データシート
Additional Feature	ACCURACY 1 MIN/MONTH @ 25 DEGREE C; 1024 HZ FIXED O/P; 10 YEARS DATA RETENTION
Clock Frequency-Max	0.032 MHz
External Data Bus Width	8
Information Access Method	PARALLEL, DIRECT ADDRESS
Interrupt Capability	Y
JESD-30 Code	R-XDIP-T28
JESD-609 Code	e0
Length	38.865 mm
Number of Terminals	28
Number of Timers	1
On Chip Data RAM Width	8
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	UNSPECIFIED
Package Code	DIP
Package Equivalence Code	DIP28,.6
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Power Supplies	5 V
Qualification Status	Not Qualified
RAM (words)	50
Seated Height-Max	10.28 mm
Sub Category	Timer or RTC
Supply Current-Max	15 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	PIN/PEG
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time-Min	1/100 SECOND
Volatile	NO
Width	15.24 mm
uPs/uCs/Peripheral ICs Type	TIMER, REAL TIME CLOCK
