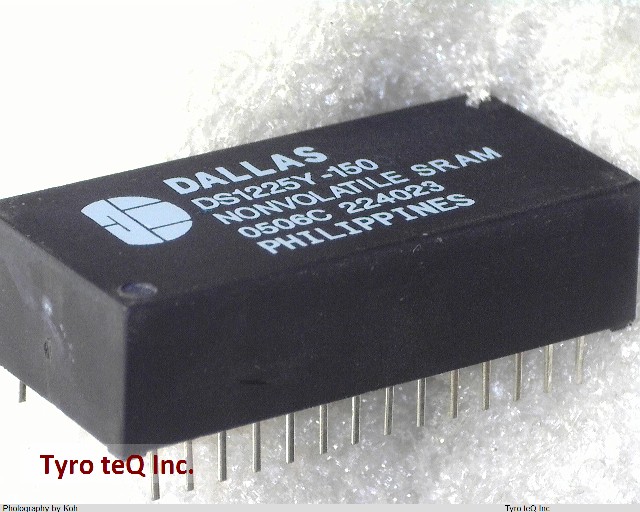

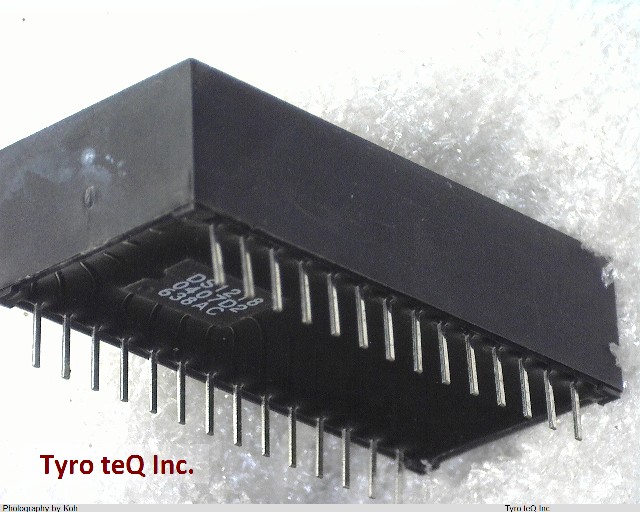

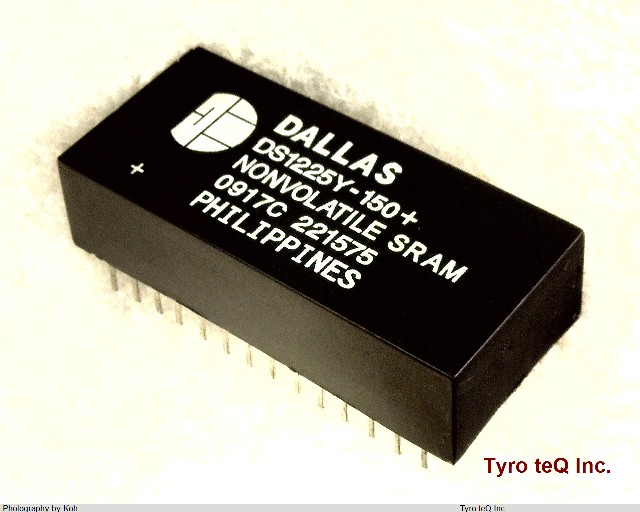

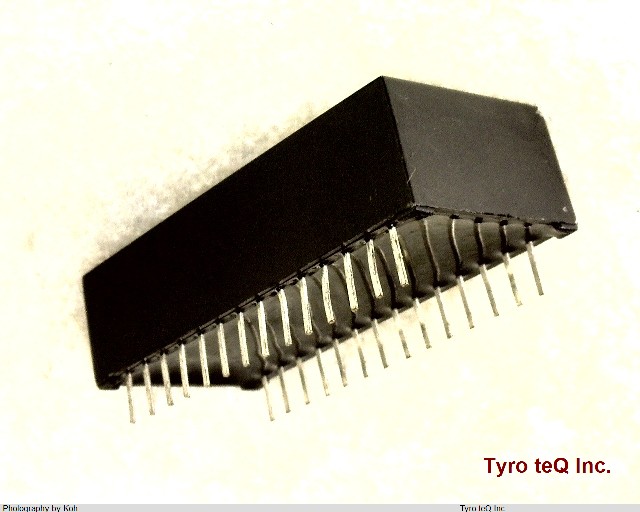

DS1225Y-150+ データシート

Name: DS1225Y-150+
Brand: DALLAS
SKU: 140000724-0000-0000-0000

DS1225Y-150+ - DALLAS の商品詳細ページです。

２営業日以内に回答いたします

DS1225Y-150+ の詳細情報

型番	DS1225Y-150+
メーカー	DALLAS
データシート
Access Time-Max	150 ns
Additional Feature	10 YEAR DATA RETENTION
JESD-30 Code	R-PDIP-P28
JESD-609 Code	e0
Length	38.225 mm
Memory Density	16384 bit
Memory IC Type	NON-VOLATILE SRAM MODULE
Memory Width	8
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	28
Number of Words	2048 words
Number of Words Code	2K
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-40 Cel
Organization	2KX8
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP28,.6
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5 V
Qualification Status	Not Qualified
Seated Height-Max	10.54 mm
Standby Current-Max	0.005 Amp
Sub Category	SRAMs
Supply Current-Max	0.075 mA
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	PIN/PEG
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	15.24 mm
