DS1225AD-200 データシート Dallas

DS1225AD-200 - DALLAS の商品詳細ページです。

1

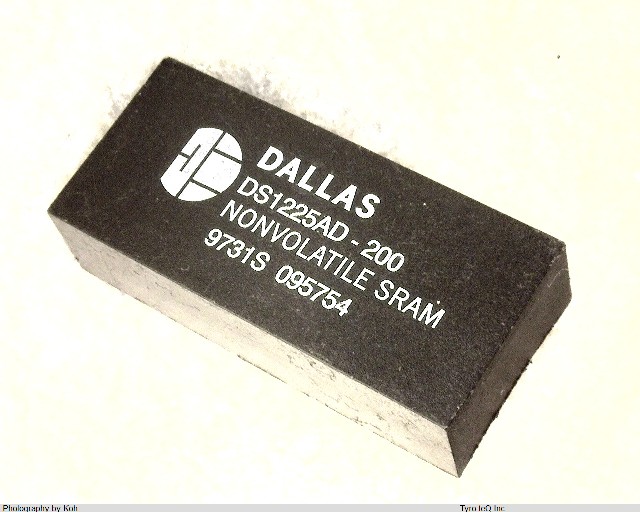

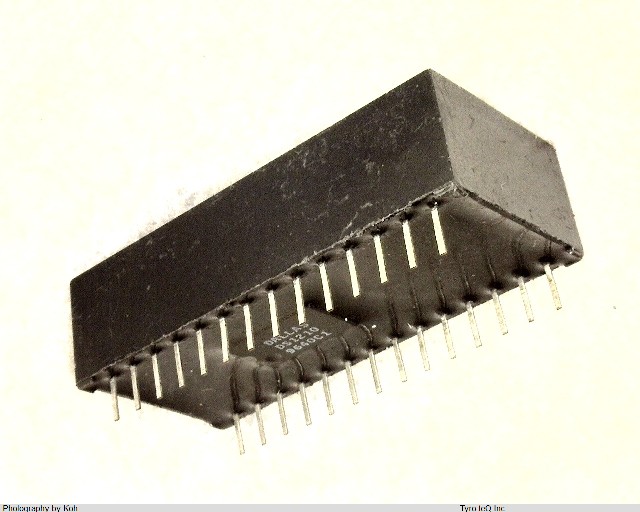

DS1225AD-200
  • DS1225AD-200
  • DS1225AD-200
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

DS1225AD-200 の詳細情報

  • 仕様・詳細
  • メーカー情報
型番DS1225AD-200
メーカーDALLAS
データシートProduct_list_pdf
Access Time-Max 200 ns
Additional Feature 10 YEAR DATA RETENTION
JESD-30 Code R-PDIP-T28
JESD-609 Code e0
Length 38.865 mm
Memory Density 65536 bit
Memory IC Type NON-VOLATILE SRAM MODULE
Memory Width 8
Number of Functions 1
Number of Terminals 28
Number of Words 8192 words
Number of Words Code 8K
Operating Mode ASYNCHRONOUS
Operating Temperature-Max 70 Cel
Operating Temperature-Min -40 Cel
Organization 8KX8
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP28,.6
Package Shape RECTANGULAR
Package Style IN-LINE Meter
Parallel/Serial PARALLEL
Power Supplies 5 V
Qualification Status Not Qualified
Seated Height-Max 10.54 mm
Standby Current-Max 0.005 Amp
Sub Category SRAMs
Supply Current-Max 0.075 mA
Supply Voltage-Max (Vsup) 5.5 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount NO
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish MATTE TIN
Terminal Form PIN/PEG
Terminal Pitch 2.54 mm
Terminal Position DUAL
Width 15.24 mm
会社名称Maxim Integrated Products
URLhttp://japan.maxim-ic.com/
