DS1220Y-150 Dallas

DS1220Y-150 - DALLAS の商品詳細ページです。

1

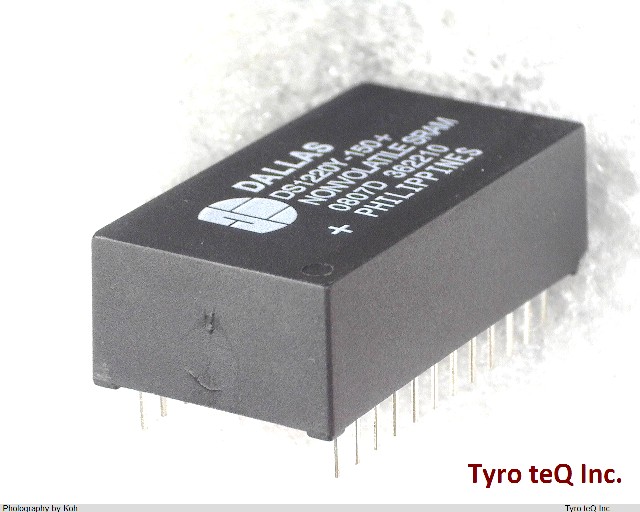

DS1220Y-150
  • DS1220Y-150
  • DS1220Y-150
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

DS1220Y-150 の詳細情報

  • 仕様・詳細
  • メーカー情報
型番DS1220Y-150
メーカーDALLAS
Access Time-Max 150 ns
Additional Feature 10 YEAR DATA RETENTION
JESD-30 Code R-PDIP-T24
JESD-609 Code e0
Memory Density 16384 bit
Memory IC Type NON-VOLATILE SRAM MODULE
Memory Width 8
Moisture Sensitivity Level 1
Number of Functions 1
Number of Ports 1
Number of Terminals 24
Number of Words 2048 words
Number of Words Code 2K
Operating Mode ASYNCHRONOUS
Operating Temperature-Max 70 Cel
Operating Temperature-Min -40 Cel
Organization 2KX8
Output Characteristics 3-STATE
Output Enable YES
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP24,.6
Package Shape RECTANGULAR
Package Style IN-LINE Meter
Parallel/Serial PARALLEL
Power Supplies 5 V
Qualification Status Not Qualified
Standby Current-Max 0.004 Amp
Sub Category SRAMs
Supply Current-Max 0.075 mA
Supply Voltage-Max (Vsup) 5.5 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount NO
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish MATTE TIN
Terminal Form PIN/PEG
Terminal Pitch 2.54 mm
Terminal Position DUAL
会社名称Maxim Integrated Products
URLhttp://japan.maxim-ic.com/
