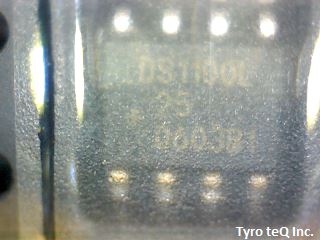

DS1100LZ-25+

Name: DS1100LZ-25+
Brand: DALLAS
SKU: 140193706-0000-0000-0000

DS1100LZ-25+ - DALLAS の商品詳細ページです。

２営業日以内に回答いたします

DS1100LZ-25+ の詳細情報

型番	DS1100LZ-25+
メーカー	DALLAS
Family	1100
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e0
Length	4.9 mm
Logic IC Type	SILICON DELAY LINE
Moisture Sensitivity Level	1
Number of Functions	1
Number of Taps/Steps	5
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Impedance-Nom (Z0)	50 ohm
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	245
Power Supplies	3.3 V
Power Supply Current-Max (ICC)	10 mA
Programmable Delay Line	NO
Prop. Delay@Nom-Sup	25 ns
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Sub Category	Delay Lines
Supply Voltage-Max (Vsup)	3.6 V
Supply Voltage-Min (Vsup)	2.7 V
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Total Delay-Nom (td)	25 ns
Width	3.9 mm
