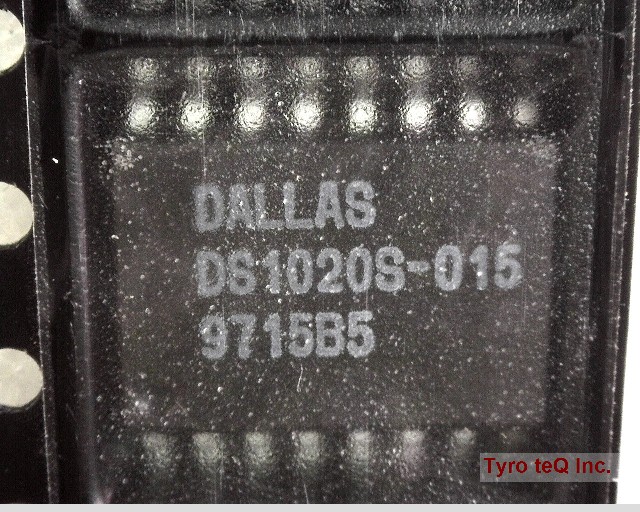

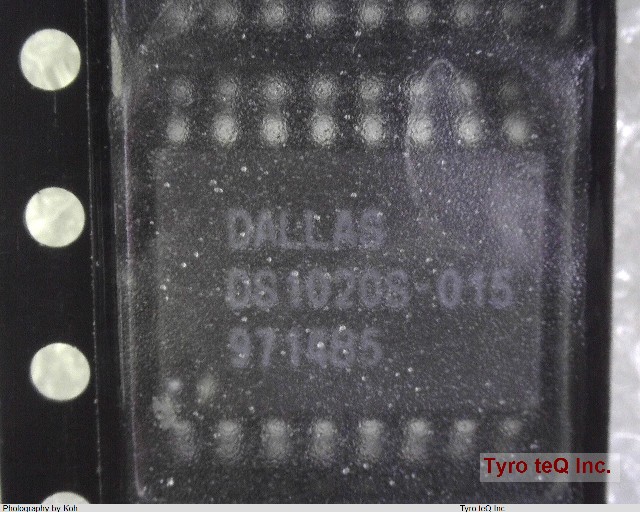

DS1020S-015
1
-
- 個
２営業日以内に回答いたします
DS1020S-015 の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | DS1020S-015 |
|---|---|
| メーカー | DALLAS |
| Additional Feature | PROGRAMMABLE USING 3-WIRE SERIAL PORT OR 8-BIT PARALLEL PORT; ENABLE |
| Family | CMOS/TTL |
| Input Frequency-Max (fmax) | 6.90846 MHz |
| JESD-30 Code | R-PDSO-G16 |
| JESD-609 Code | e0 |
| Length | 10.335 mm |
| Logic IC Type | SILICON DELAY LINE |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 1 |
| Number of Taps/Steps | 255 |
| Number of Terminals | 16 |
| Operating Temperature-Max | 70 Cel |
| Operating Temperature-Min | 0 Cel |
| Output Polarity | TRUE |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOP |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE Meter |
| Programmable Delay Line | YES |
| Qualification Status | Not Qualified |
| Seated Height-Max | 2.68 mm |
| Supply Voltage-Max (Vsup) | 5.25 V |
| Supply Voltage-Min (Vsup) | 4.75 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | TIN LEAD |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |
| Total Delay-Nom (td) | 48.25 ns |
| Width | 7.51 mm |
| 会社名称 | Maxim Integrated Products |
|---|---|
| URL | http://japan.maxim-ic.com/ |
