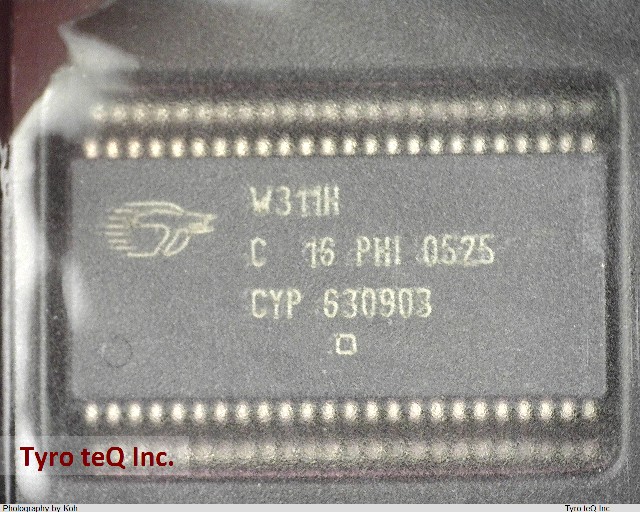

W311HT

Name: W311HT
Brand: CYPRESS
SKU: 330023765-0000-0000-0000

W311HT - CYPRESS の商品詳細ページです。

２営業日以内に回答いたします

W311HT の詳細情報

型番	W311HT
メーカー	CYPRESS
Additional Feature	CAN ALSO OPERATE AT 3.3V SUPPLY
JESD-30 Code	R-PDSO-G48
JESD-609 Code	e0
Length	15.875 mm
Moisture Sensitivity Level	1
Number of Terminals	48
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Clock Frequency-Max	200 MHz
Package Body Material	PLASTIC/EPOXY
Package Code	SSOP
Package Equivalence Code	SSOP48,.4
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	2.5,3.3 V
Primary Clock/Crystal Frequency-Nom	14.31818 MHz
Qualification Status	Not Qualified
Seated Height-Max	2.794 mm
Sub Category	Clock Generators
Supply Voltage-Max	2.625 V
Supply Voltage-Min	2.375 V
Supply Voltage-Nom	2.5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	NOT APPLICABLE
Terminal Form	GULL WING
Terminal Pitch	0.635 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7.5057 mm
uPs/uCs/Peripheral ICs Type	CLOCK GENERATOR, PROCESSOR SPECIFIC
