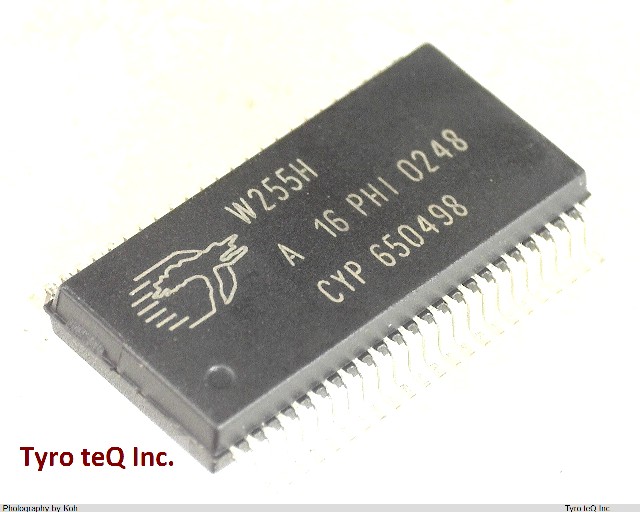

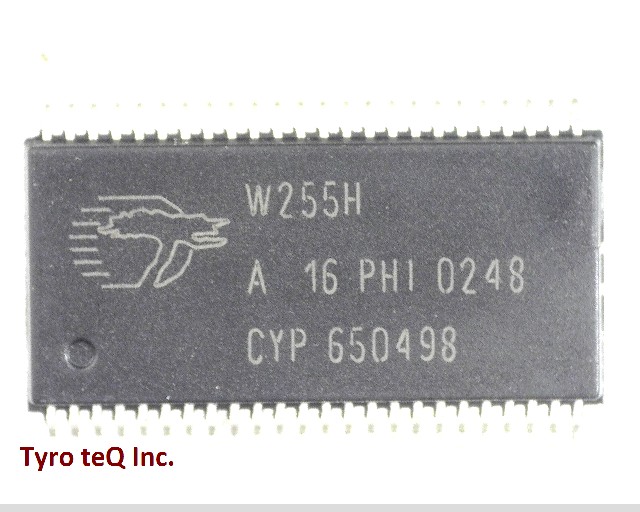

W255H

Name: W255H
Brand: CYPRESS
SKU: 330000829-0000-0000-0000

W255H - CYPRESS の商品詳細ページです。

２営業日以内に回答いたします

W255H の詳細情報

型番	W255H
メーカー	CYPRESS
Additional Feature	ALSO OPERATES AT 3.3V SUPPLY
Family	255
Input Conditioning	STANDARD
JESD-30 Code	R-PDSO-G48
JESD-609 Code	e0
Length	15.875 mm
Logic IC Type	LOW SKEW CLOCK DRIVER
Max I(ol)	0.012 Amp
Moisture Sensitivity Level	1
Number of Functions	1
Number of Inverted Outputs	0
Number of Terminals	48
Number of True Outputs	12
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SSOP
Package Equivalence Code	SSOP48,.4
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	2.5/3.3 V
Propagation Delay (tpd)	10 ns
Qualification Status	Not Qualified
Same Edge Skew-Max (tskwd)	0.15 ns
Seated Height-Max	2.794 mm
Sub Category	Clock Drivers
Supply Voltage-Max (Vsup)	2.625 V
Supply Voltage-Min (Vsup)	2.375 V
Supply Voltage-Nom (Vsup)	2.5 V
Surface Mount	YES
Temperature Grade	COMMERCIAL
Terminal Finish	TIN LEAD
Terminal Form	GULL WING
Terminal Pitch	0.635 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7.5057 mm
fmax-Min	200 MHz
