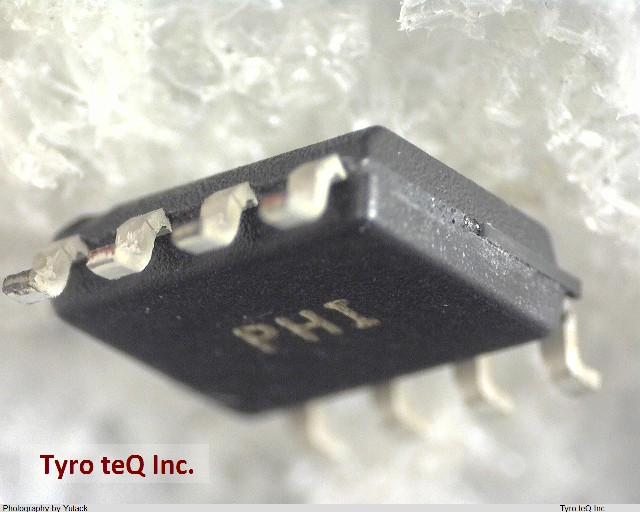

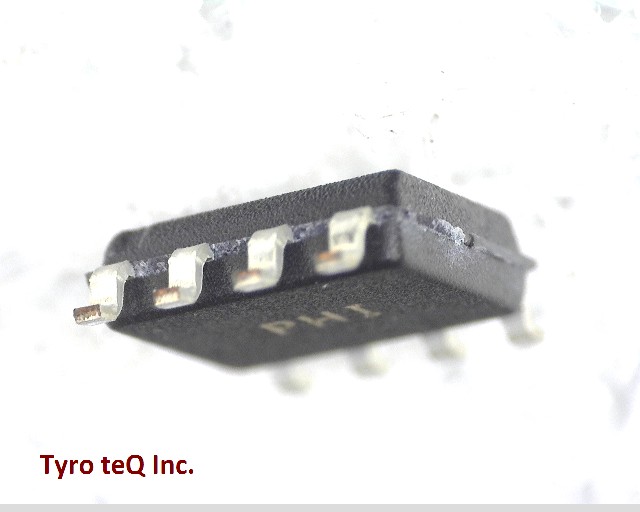

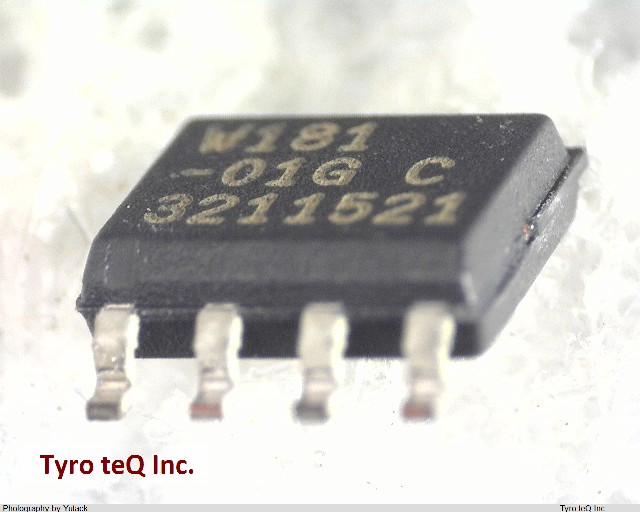

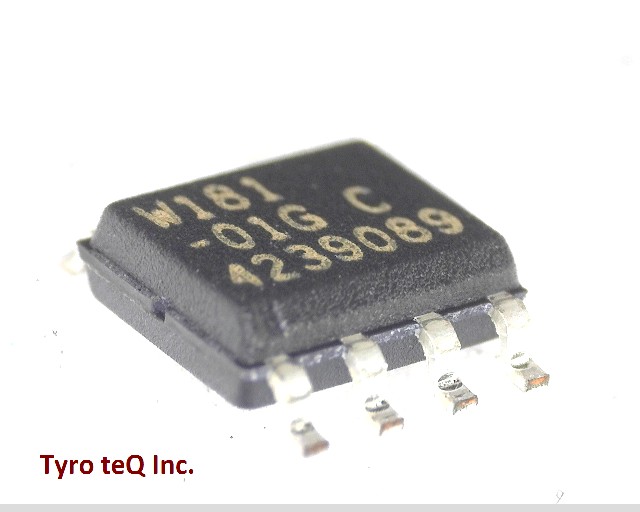

W181-01G

Name: W181-01G
Brand: CYPRESS
SKU: 330048370-0000-0000-0000

W181-01G - CYPRESS の商品詳細ページです。

２営業日以内に回答いたします

W181-01G の詳細情報

型番	W181-01G
メーカー	CYPRESS
Additional Feature	ALSO OPERATES AT 5V SUPPLY
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e0
Length	4.889 mm
Moisture Sensitivity Level	1
Number of Terminals	8
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-40 Cel
Output Clock Frequency-Max	75 MHz
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Power Supplies	3.3/5 V
Primary Clock/Crystal Frequency-Nom	75 MHz
Qualification Status	Not Qualified
Seated Height-Max	1.727 mm
Sub Category	Clock Generators
Supply Current-Max	50 mA
Supply Voltage-Max	3.465 V
Supply Voltage-Min	3.135 V
Supply Voltage-Nom	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	TIN LEAD
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Width	3.8985 mm
uPs/uCs/Peripheral ICs Type	CLOCK GENERATOR, OTHER
