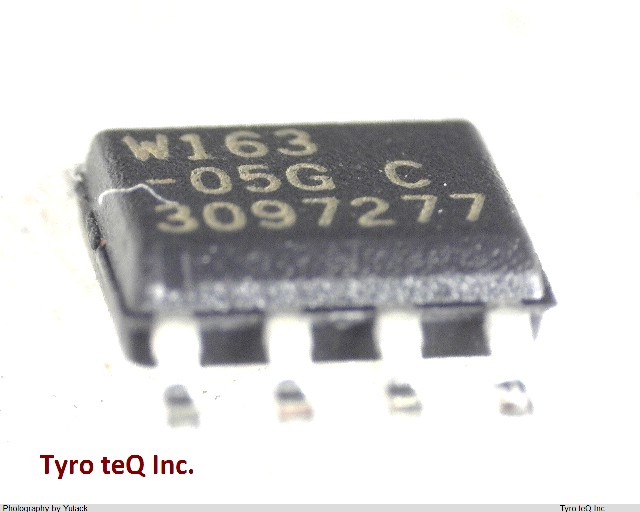

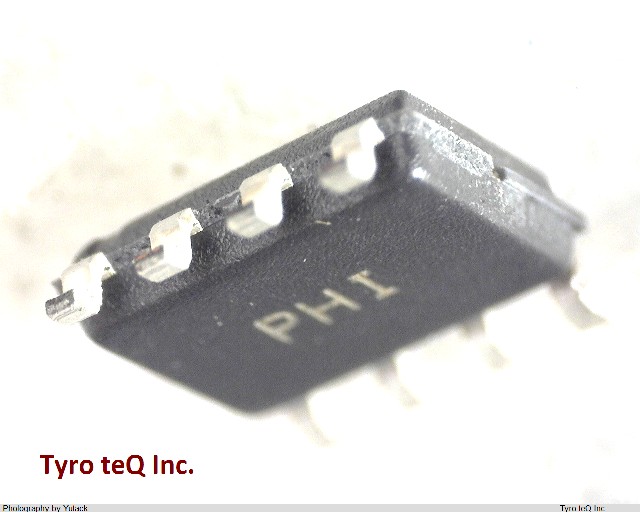

W163-05G
1
-
- 個
２営業日以内に回答いたします
W163-05G の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | W163-05G |
|---|---|
| メーカー | CYPRESS |
| Family | W163 |
| Input Conditioning | STANDARD |
| JESD-30 Code | R-PDSO-G8 |
| JESD-609 Code | e0 |
| Length | 4.9 mm |
| Logic IC Type | PLL BASED CLOCK DRIVER |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 1 |
| Number of Inverted Outputs | 0 |
| Number of Terminals | 8 |
| Number of True Outputs | 4 |
| Operating Temperature-Max | 70 Cel |
| Operating Temperature-Min | 0 Cel |
| Output Characteristics | 3-STATE |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOP |
| Package Equivalence Code | SOP8,.25 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE Meter |
| Power Supplies | 3.3 V |
| Qualification Status | Not Qualified |
| Same Edge Skew-Max (tskwd) | 0.25 ns |
| Seated Height-Max | 1.75 mm |
| Sub Category | Clock Drivers |
| Supply Voltage-Max (Vsup) | 3.63 V |
| Supply Voltage-Min (Vsup) | 2.97 V |
| Supply Voltage-Nom (Vsup) | 3.3 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | TIN LEAD |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |
| Width | 3.9 mm |
| fmax-Min | 133 MHz |
| 会社名称 | Cypress Semiconductor Corporation. |
|---|---|
| 所在地 | 198 Champion Court San Jose, CA 95134 USA |
| URL | http://www.cypress.com/ |
