SL811HST-AXC データシート

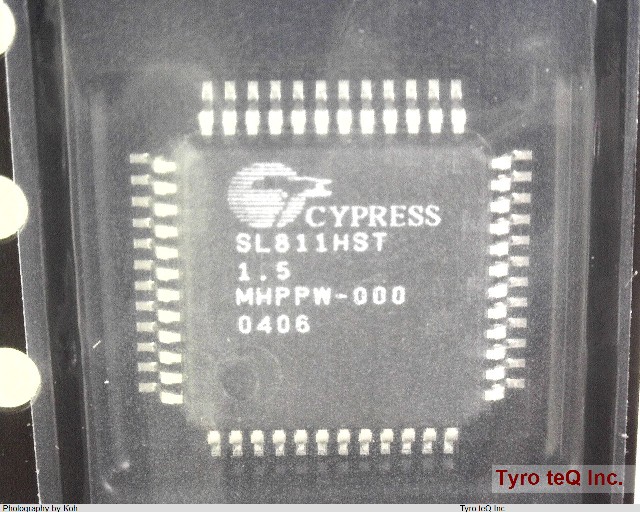

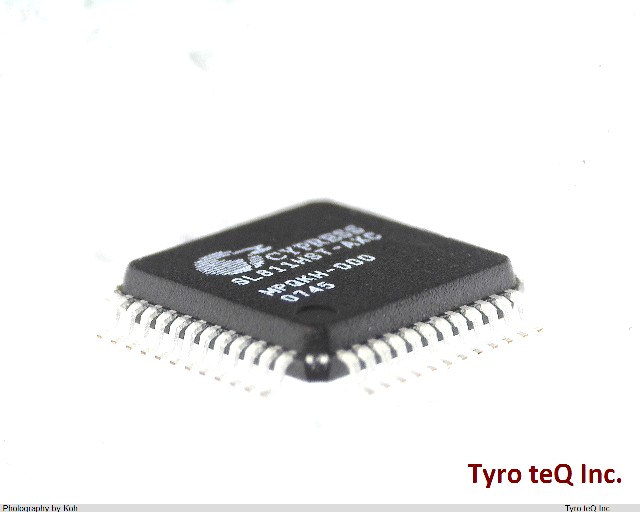

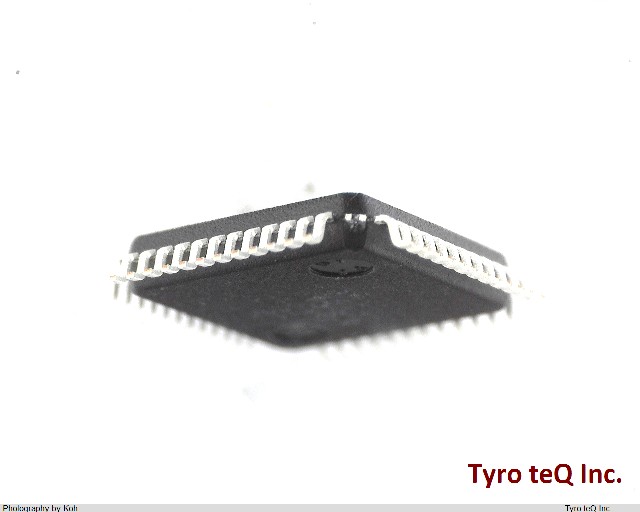

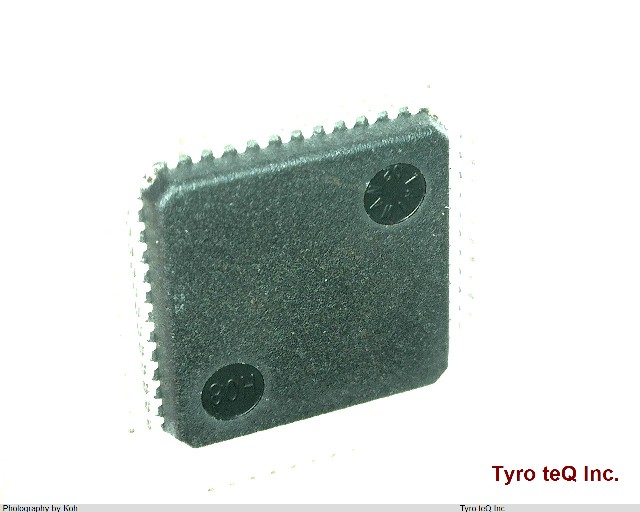

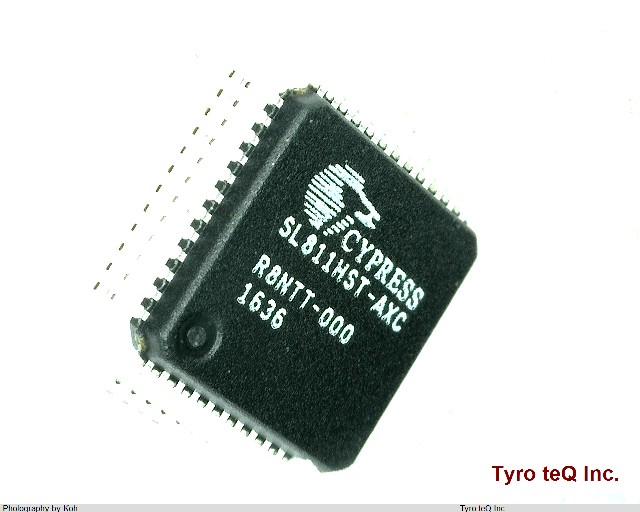

Name: SL811HST-AXC
Brand: CYPRESS
SKU: 290029558-0000-0000-0000

SL811HST-AXC - CYPRESS の商品詳細ページです。

２営業日以内に回答いたします

SL811HST-AXC の詳細情報

型番	SL811HST-AXC
メーカー	CYPRESS
データシート
Address Bus Width	8
Bus Compatibility	ISA; PCMCIA
Clock Frequency-Max	48 MHz
Data Transfer Rate-Max	1.5 MBps
External Data Bus Width	8
JESD-30 Code	S-PQFP-G48
JESD-609 Code	e3
Length	7 mm
Moisture Sensitivity Level	3
Number of Terminals	48
Operating Temperature-Max	65 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	LFQFP
Package Equivalence Code	QFP48,.35SQ,20
Package Shape	SQUARE
Package Style	FLATPACK, LOW PROFILE, FINE PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	3.3 V
Qualification Status	Not Qualified
Seated Height-Max	1.6 mm
Sub Category	Bus Controllers
Supply Current-Max	25 mA
Supply Voltage-Max	3.45 V
Supply Voltage-Min	3 V
Supply Voltage-Nom	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	30
Width	7 mm
uPs/uCs/Peripheral ICs Type	BUS CONTROLLER, UNIVERSAL SERIAL BUS
