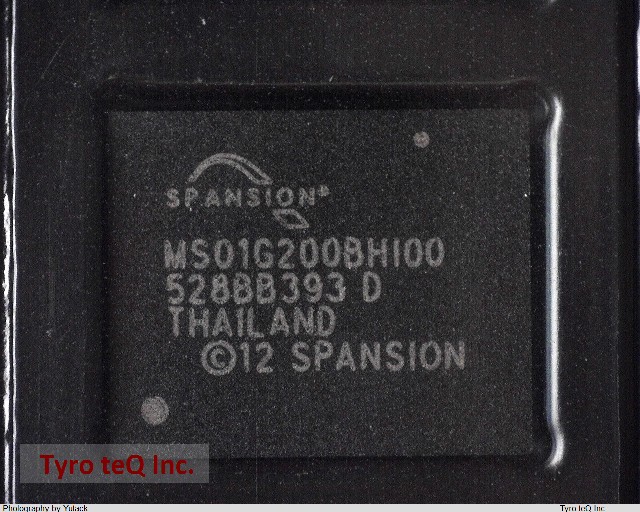

S34MS01G200BHI000

Name: S34MS01G200BHI000
Brand: CYPRESS
SKU: 290465810-0000-0000-0000

S34MS01G200BHI000 - CYPRESS の商品詳細ページです。

２営業日以内に回答いたします

S34MS01G200BHI000 の詳細情報

型番	S34MS01G200BHI000
メーカー	CYPRESS
JESD-30 Code	R-PBGA-B63
Length	11 mm
Memory Density	1073741824 bit
Memory IC Type	FLASH
Memory Width	8
Moisture Sensitivity Level	3
Number of Functions	1
Number of Terminals	63
Number of Words	134217728 words
Number of Words Code	128M
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Organization	128MX8
Package Body Material	PLASTIC/EPOXY
Package Code	VFBGA
Package Shape	RECTANGULAR
Package Style	GRID ARRAY, VERY THIN PROFILE, FINE PITCH Meter
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Cel)	260
Programming Voltage	1.8 V
Seated Height-Max	1 mm
Supply Voltage-Max (Vsup)	1.95 V
Supply Voltage-Min (Vsup)	1.7 V
Supply Voltage-Nom (Vsup)	1.8 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Form	BALL
Terminal Pitch	0.8 mm
Terminal Position	BOTTOM
Type	SLC NAND TYPE
Width	9 mm
