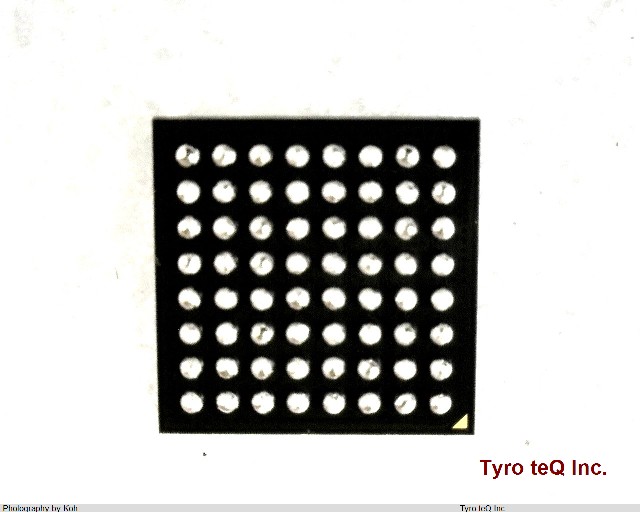

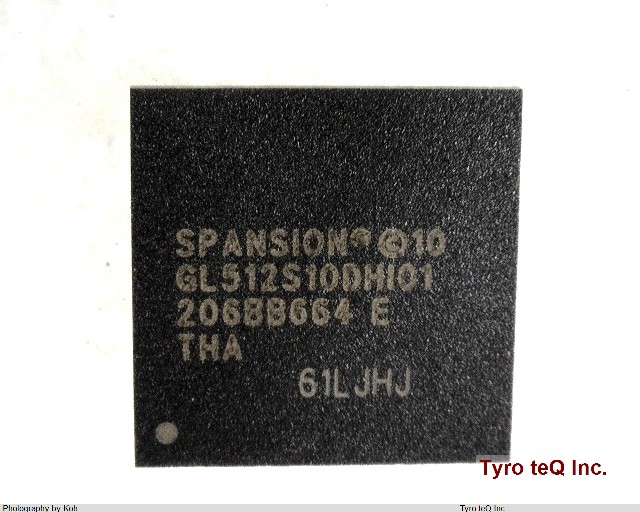

S29GL512S10DHI010

Name: S29GL512S10DHI010
Brand: CYPRESS
SKU: 290465906-0000-0000-0000

S29GL512S10DHI010 - CYPRESS の商品詳細ページです。

２営業日以内に回答いたします

S29GL512S10DHI010 の詳細情報

型番	S29GL512S10DHI010
メーカー	CYPRESS
Access Time-Max	100 ns
Boot Block	BOTTOM/TOP
Command User Interface	YES
Common Flash Interface	YES
Data Polling	YES
JESD-30 Code	S-PBGA-B64
JESD-609 Code	e1
Length	9 mm
Memory Density	536870912 bit
Memory IC Type	FLASH
Memory Width	8
Moisture Sensitivity Level	3
Number of Functions	1
Number of Sectors/Size	512
Number of Terminals	64
Number of Words	67108864 words
Number of Words Code	64M
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Organization	64MX8
Package Body Material	PLASTIC/EPOXY
Package Code	LBGA
Package Equivalence Code	BGA64,8X8,40
Package Shape	SQUARE
Package Style	GRID ARRAY, LOW PROFILE Meter
Page Size	16 words
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Cel)	260
Power Supplies	3/3.3 V
Programming Voltage	2.7 V
Qualification Status	Not Qualified
Ready/Busy	YES
Seated Height-Max	1.4 mm
Sector Size	64K Words
Standby Current-Max	0.0001 Amp
Sub Category	Flash Memories
Supply Current-Max	0.08 mA
Supply Voltage-Max (Vsup)	3.6 V
Supply Voltage-Min (Vsup)	2.7 V
Supply Voltage-Nom (Vsup)	3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN SILVER COPPER
Terminal Form	BALL
Terminal Pitch	1 mm
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	30
Toggle Bit	YES
