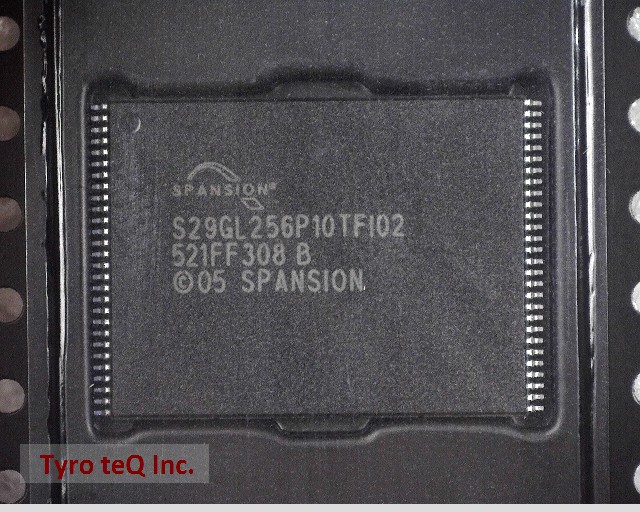

S29GL256P10TFI020

Name: S29GL256P10TFI020
Brand: CYPRESS
SKU: 290469599-0000-0000-0000

S29GL256P10TFI020 - CYPRESS の商品詳細ページです。

２営業日以内に回答いたします

S29GL256P10TFI020 の詳細情報

型番	S29GL256P10TFI020
メーカー	CYPRESS
Access Time-Max	100 ns
Alternate Memory Width	8
Command User Interface	YES
Common Flash Interface	YES
Data Polling	YES
JESD-30 Code	R-PDSO-G56
JESD-609 Code	e3
Length	18.4 mm
Memory Density	268435456 bit
Memory IC Type	FLASH
Memory Width	1
Moisture Sensitivity Level	3
Number of Functions	1
Number of Sectors/Size	256
Number of Terminals	56
Number of Words	16777216 words
Number of Words Code	16M
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Organization	16MX16
Package Body Material	PLASTIC/EPOXY
Package Code	HTSSOP
Package Equivalence Code	TSSOP56,.8,20
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH Meter
Page Size	8/16 words
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Cel)	260
Power Supplies	3/3.3 V
Programming Voltage	3 V
Qualification Status	Not Qualified
Ready/Busy	YES
Seated Height-Max	1.2 mm
Sector Size	128K Words
Standby Current-Max	5.0E-6 Amp
Sub Category	Flash Memories
Supply Current-Max	0.08 mA
Supply Voltage-Max (Vsup)	3.6 V
Supply Voltage-Min (Vsup)	2.7 V
Supply Voltage-Nom (Vsup)	3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	40
Toggle Bit	YES
