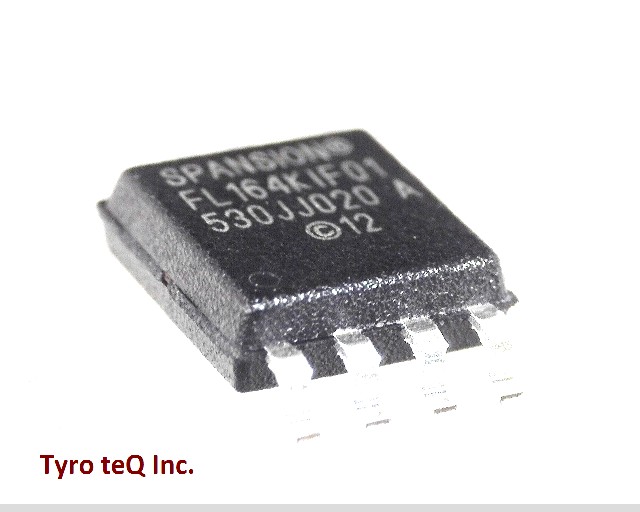

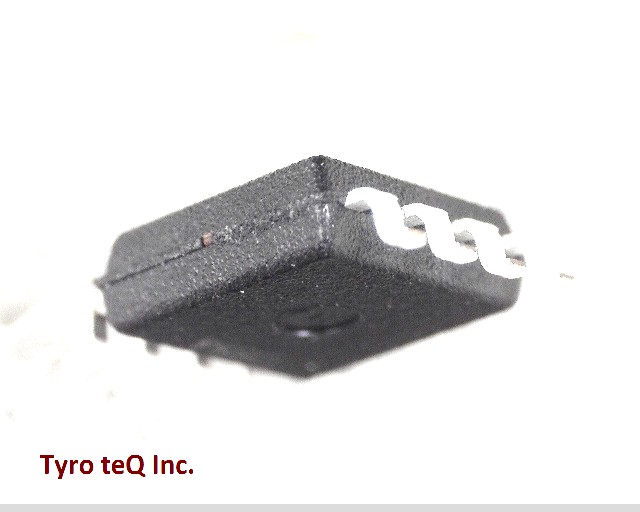

S25FL164K0XMFI013

Name: S25FL164K0XMFI013
Brand: CYPRESS
SKU: 290469668-0000-0000-0000

S25FL164K0XMFI013 - CYPRESS の商品詳細ページです。

２営業日以内に回答いたします

S25FL164K0XMFI013 の詳細情報

型番	S25FL164K0XMFI013
メーカー	CYPRESS
Additional Feature	ALSO CONFIGURABLE AS 64M X 1
Alternate Memory Width	2
Clock Frequency-Max (fCLK)	108 MHz
Data Retention Time-Min	20
Endurance	100000 Write/Erase Cycles
JESD-30 Code	S-PDSO-G8
JESD-609 Code	e3
Length	5.283 mm
Memory Density	67108864 bit
Memory IC Type	FLASH
Memory Width	4
Number of Functions	1
Number of Terminals	8
Number of Words	16777216 words
Number of Words Code	16M
Operating Mode	SYNCHRONOUS
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Organization	16MX4
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.3
Package Shape	SQUARE
Package Style	SMALL OUTLINE Meter
Parallel/Serial	SERIAL
Peak Reflow Temperature (Cel)	260
Power Supplies	3/3.3 V
Programming Voltage	3 V
Qualification Status	Not Qualified
Seated Height-Max	2.159 mm
Serial Bus Type	SPI
Standby Current-Max	5.0E-6 Amp
Sub Category	Flash Memories
Supply Current-Max	0.025 mA
Supply Voltage-Max (Vsup)	3.6 V
Supply Voltage-Min (Vsup)	2.7 V
Supply Voltage-Nom (Vsup)	3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	40
Type	NOR TYPE
Width	5.283 mm
Write Protection	HARDWARE/SOFTWARE
