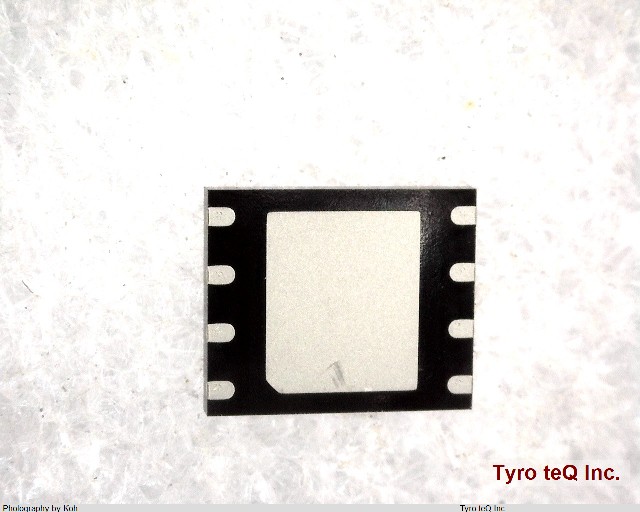

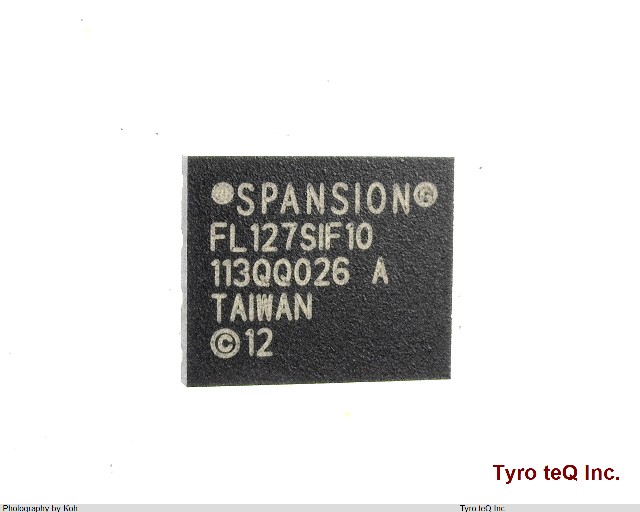

S25FL127SABNFI101

Name: S25FL127SABNFI101
Brand: CYPRESS
SKU: 290469145-0000-0000-0000

S25FL127SABNFI101 - CYPRESS の商品詳細ページです。

２営業日以内に回答いたします

S25FL127SABNFI101 の詳細情報

型番	S25FL127SABNFI101
メーカー	CYPRESS
Alternate Memory Width	4
Clock Frequency-Max (fCLK)	108 MHz
Data Retention Time-Min	20
Endurance	100000 Write/Erase Cycles
JESD-30 Code	R-PDSO-N8
JESD-609 Code	e3
Length	6 mm
Memory Density	134217728 bit
Memory IC Type	FLASH
Memory Width	8
Moisture Sensitivity Level	3
Number of Functions	1
Number of Terminals	8
Number of Words	16777216 words
Number of Words Code	16M
Operating Mode	SYNCHRONOUS
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Organization	16MX8
Output Characteristics	3-STATE
Package Body Material	PLASTIC/EPOXY
Package Code	HVSON
Package Equivalence Code	SOLCC8,.24
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Parallel/Serial	SERIAL
Power Supplies	3/3.3 V
Programming Voltage	3 V
Qualification Status	Not Qualified
Seated Height-Max	0.8 mm
Serial Bus Type	SPI
Standby Current-Max	0.0001 Amp
Sub Category	Flash Memories
Supply Current-Max	0.05 mA
Supply Voltage-Max (Vsup)	3.6 V
Supply Voltage-Min (Vsup)	2.7 V
Supply Voltage-Nom (Vsup)	3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	NO LEAD
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Type	NOR TYPE
Width	5 mm
Write Protection	HARDWARE
