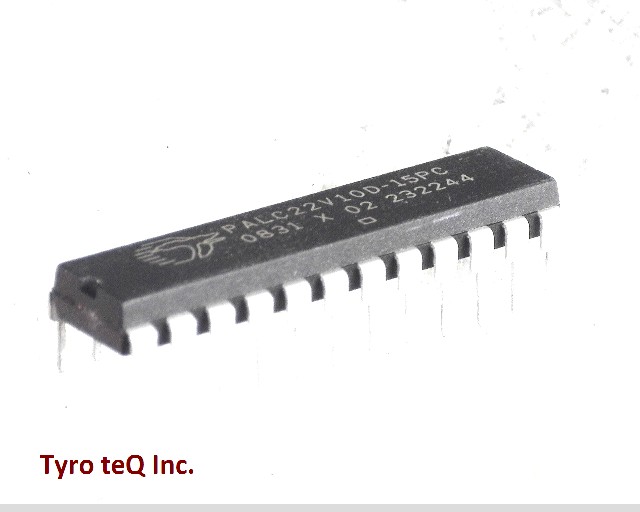

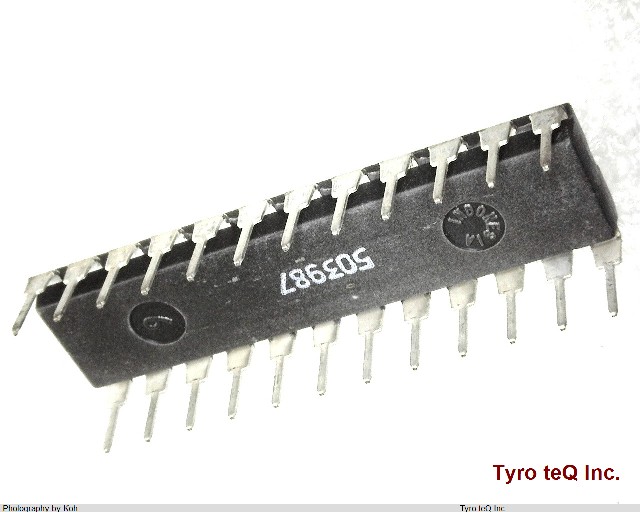

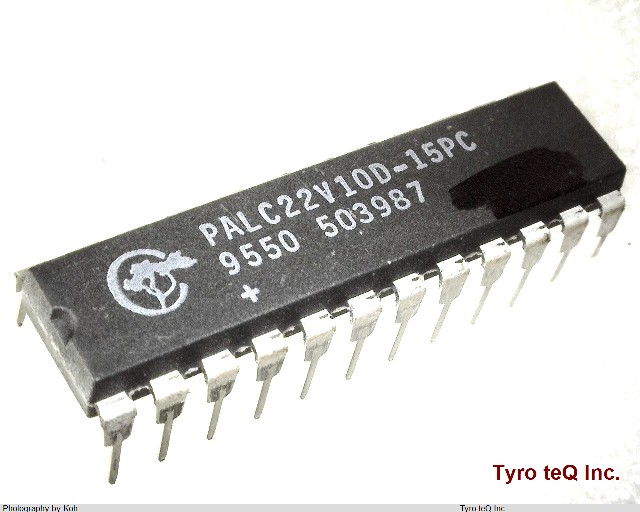

PALC22V10D-15PC

Name: PALC22V10D-15PC
Brand: CYPRESS
SKU: 260233456-0000-0000-0000

PALC22V10D-15PC - CYPRESS の商品詳細ページです。

２営業日以内に回答いたします

PALC22V10D-15PC の詳細情報

型番	PALC22V10D-15PC
メーカー	CYPRESS
Additional Feature	10 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK; VARIABLE PRODUCT TERMS
Architecture	PAL-TYPE
Clock Frequency-Max	55.5 MHz
JESD-30 Code	R-PDIP-T24
JESD-609 Code	e0
Number of Dedicated Inputs	11
Number of I/O Lines	10
Number of Inputs	22
Number of Outputs	10
Number of Product Terms	132
Number of Terminals	24
Operating Temperature-Max	75 Cel
Operating Temperature-Min	0 Cel
Organization	11 DEDICATED INPUTS, 10 I/O
Output Function	MACROCELL
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP24,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Power Supplies	5 V
Programmable Logic Type	FLASH PLD
Propagation Delay	15 ns
Qualification Status	Not Qualified
Sub Category	Programmable Logic Devices
Supply Voltage-Max	5.25 V
Supply Voltage-Min	4.75 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
