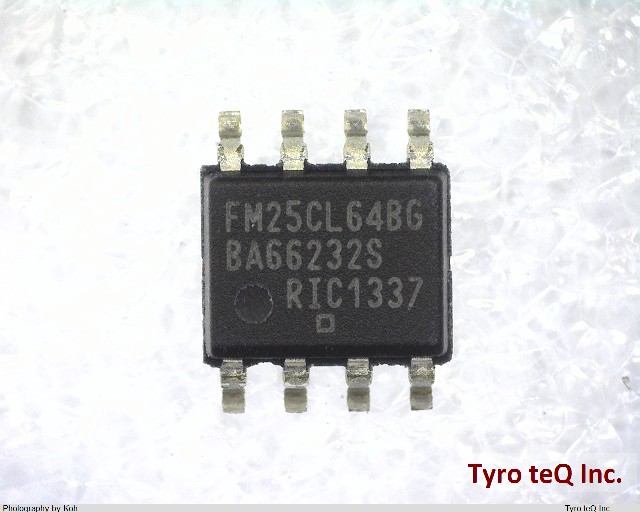

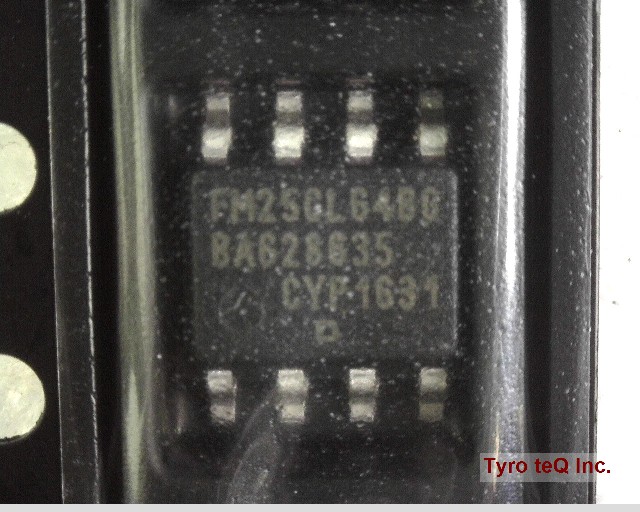

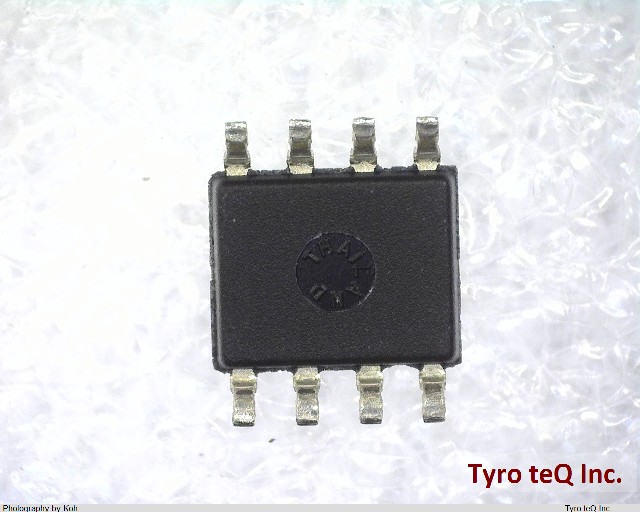

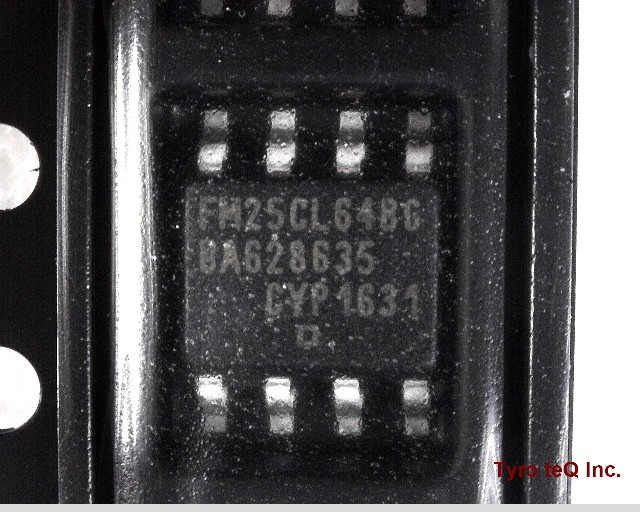

FM25CL64B-G

Name: FM25CL64B-G
Brand: CYPRESS
SKU: 160145953-0000-0000-0000

FM25CL64B-G - CYPRESS の商品詳細ページです。

２営業日以内に回答いたします

FM25CL64B-G の詳細情報

型番	FM25CL64B-G
メーカー	CYPRESS
Additional Feature	2kv ESD available
Clock Frequency-Max (fCLK)	16 MHz
Data Retention Time-Min	10
Endurance	10000000000000 Write/Erase Cycles
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e4
Length	4.889 mm
Memory Density	65536 bit
Memory IC Type	FRAM
Memory Width	8
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	8
Number of Words	8192 words
Number of Words Code	8K
Operating Mode	SYNCHRONOUS
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Organization	8KX8
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Parallel/Serial	SERIAL
Peak Reflow Temperature (Cel)	260
Power Supplies	3.3 V
Qualification Status	Not Qualified
Screening Level	AEC-Q100
Seated Height-Max	1.727 mm
Serial Bus Type	SPI
Standby Current-Max	6.0E-6 Amp
Standby Voltage-Min	2.7 V
Sub Category	SRAMs
Supply Current-Max	0.003 mA
Supply Voltage-Max (Vsup)	3.6 V
Supply Voltage-Min (Vsup)	2.7 V
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	YES
Technology	CMOS
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	20
Width	3.8985 mm
Write Protection	HARDWARE/SOFTWARE
