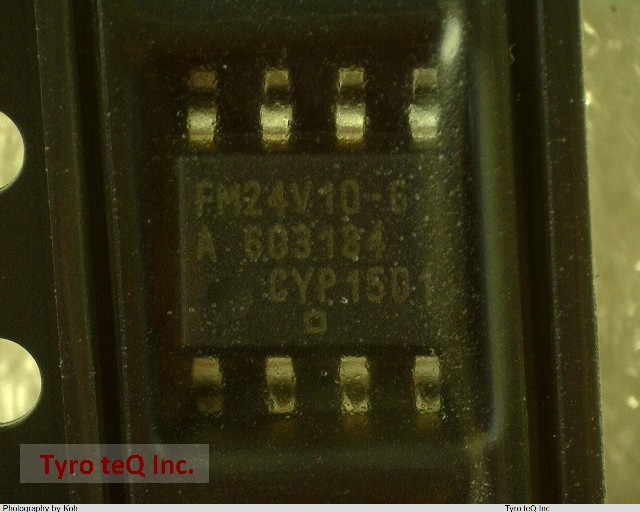

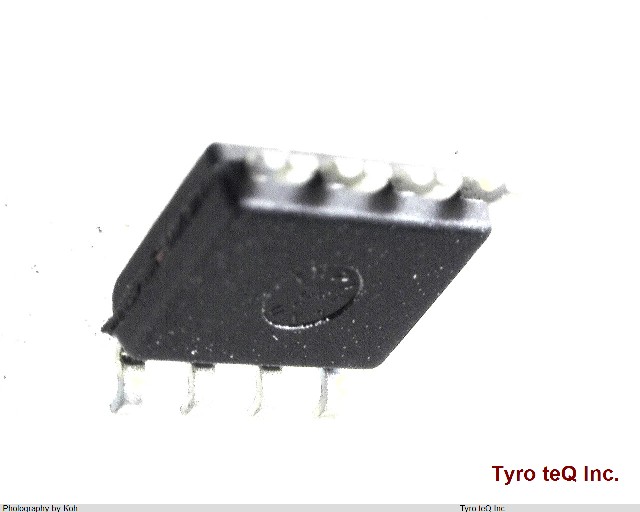

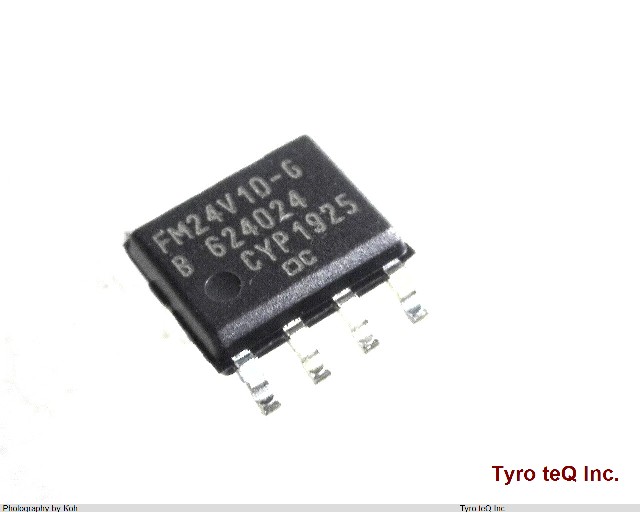

FM24V10-G

Name: FM24V10-G
Brand: CYPRESS
SKU: 160146043-0000-0000-0000

FM24V10-G - CYPRESS の商品詳細ページです。

２営業日以内に回答いたします

FM24V10-G の詳細情報

型番	FM24V10-G
メーカー	CYPRESS
Additional Feature	also operates with 1 MHZ ; 2.5KV ESD AVAILABLE
Clock Frequency-Max (fCLK)	3.4 MHz
Data Retention Time-Min	10
Endurance	1.0E+14 Write/Erase Cycles
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e3
Length	4.889 mm
Memory Density	1048576 bit
Memory IC Type	FRAM
Memory Width	8
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	8
Number of Words	131072 words
Number of Words Code	128K
Operating Mode	SYNCHRONOUS
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Organization	128KX8
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Parallel/Serial	SERIAL
Peak Reflow Temperature (Cel)	260
Power Supplies	2.5/3.3 V
Qualification Status	Not Qualified
Seated Height-Max	1.727 mm
Serial Bus Type	I2C
Standby Current-Max	0.00015 Amp
Standby Voltage-Min	2 V
Sub Category	SRAMs
Supply Current-Max	0.001 mA
Supply Voltage-Max (Vsup)	3.6 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	YES
Technology	CMOS
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	3.8985 mm
Write Protection	HARDWARE
