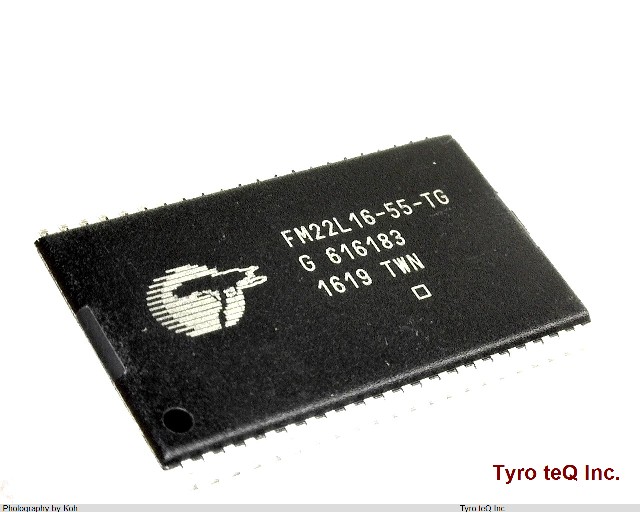

FM22L16-55-TG

Name: FM22L16-55-TG
Brand: CYPRESS
SKU: 160149598-0000-0000-0000

FM22L16-55-TG - CYPRESS の商品詳細ページです。

２営業日以内に回答いたします

FM22L16-55-TG の詳細情報

型番	FM22L16-55-TG
メーカー	CYPRESS
Access Time-Max	110 ns
Additional Feature	DATA RETENTION TIME @ 85 DEGREE CENTIGRADE;2.5KV ESD AVAILABLE;ALSO CONFIGURABLE AS 512KX8
Data Retention Time-Min	10
Endurance	1.0E+14 Write/Erase Cycles
JESD-30 Code	R-PDSO-G44
Length	18.41 mm
Memory Density	4194304 bit
Memory IC Type	FRAM
Memory Width	16
Moisture Sensitivity Level	3
Number of Functions	1
Number of Terminals	44
Number of Words	262144 words
Number of Words Code	256K
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Organization	256KX16
Package Body Material	PLASTIC/EPOXY
Package Code	TSOP2
Package Equivalence Code	TSOP44,.46,32
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE Meter
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Cel)	260
Seated Height-Max	1.2 mm
Standby Current-Max	0.00027 Amp
Standby Voltage-Min	2.7 V
Supply Current-Max	0.012 mA
Supply Voltage-Max (Vsup)	3.6 V
Supply Voltage-Min (Vsup)	2.7 V
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	YES
Technology	CMOS
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.8 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	10.16 mm
