FM21L16-60-TG Cypress

FM21L16-60-TG - CYPRESS の商品詳細ページです。

1

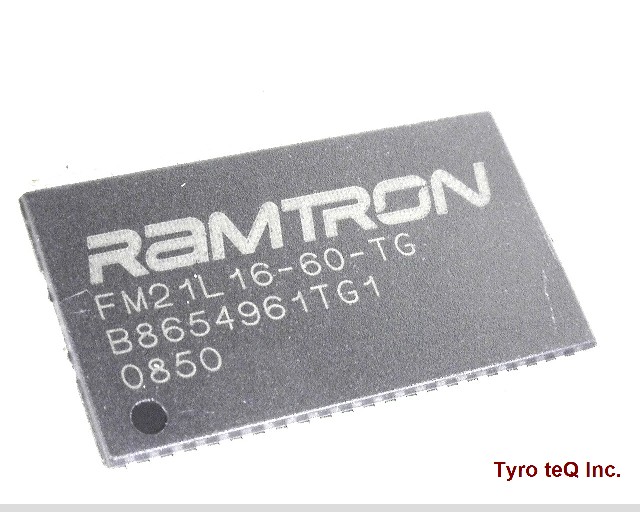

FM21L16-60-TG
  • FM21L16-60-TG
  • FM21L16-60-TG
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

FM21L16-60-TG の詳細情報

  • 仕様・詳細
  • メーカー情報
型番FM21L16-60-TG
メーカーCYPRESS
Access Time-Max 110 ns
Access Time-Max (ns) 110
Additional Feature DATA RETENTION TIME @ 85 DEGREE CENTIGRADE
DLA Qualification Not Qualified
Data Retention Time-Min 10
Endurance 1.0E+14 Write/Erase Cycles
Endurance (Write/Erase Cycles) 1.0E+14
J-STD-609 Code e4
JESD-30 Code R-PDSO-G44
JESD-609 Code e4
Length 18.41 mm
Length (mm) 18.41
Memory Density 2097152 bit
Memory Density (bits) 2097152
Memory IC Type FRAM
Memory Organization 128KX16
Memory Width 16
Moisture Sensitivity Level 3
Number of Functions 1
Number of Terminals 44
Number of Words 131072 words
Number of Words (words) 131072
Number of Words Code 128K
Operating Mode ASYNCHRONOUS
Operating Temperature-Max 85 Cel
Operating Temperature-Max (Cel) 85
Operating Temperature-Min (Cel) -40
Package Body Material PLASTIC/EPOXY
Package Code TSOP2
Package Equivalence Code TSOP44,.46,32
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE Meter
Parallel/Serial PARALLEL
Peak Reflow Temperature (Cel) 260
Seated Height-Max (mm) 1.2
Standby Current-Max (A) 0.00027
Standby Voltage-Min (V) 2.7
Sub Category SRAMs
Supply Current-Max (mA) 12
Supply Voltage-Max (V) 3.6
Supply Voltage-Min (V) 2.7
Supply Voltage-Nom (V) 3.3
Surface Mount YES
Technology CMOS
Terminal Finish MATTE TIN
Terminal Form GULL WING
Terminal Pitch (mm) 0.8
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 10
Width (mm) 10.16
会社名称Cypress Semiconductor Corporation.
所在地198 Champion Court San Jose, CA 95134 USA
URLhttp://www.cypress.com/
