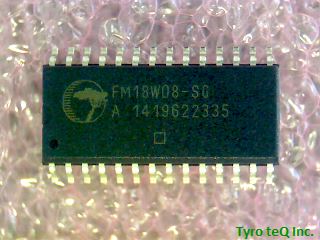

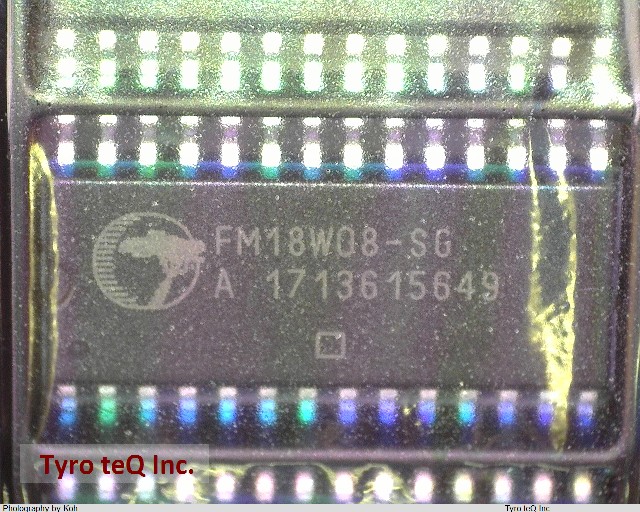

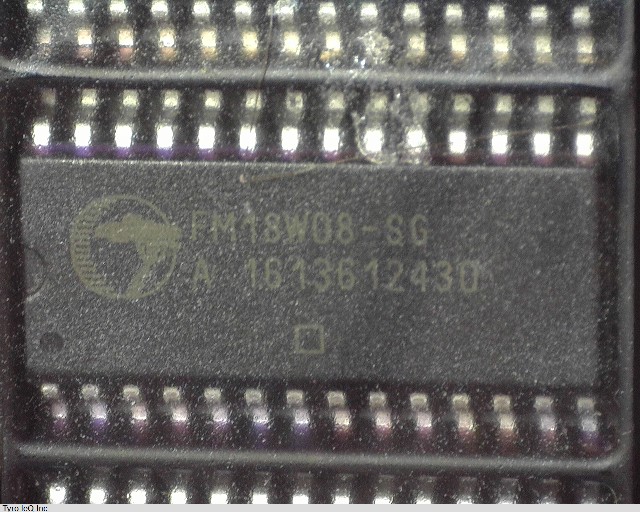

FM18W08-SG

Name: FM18W08-SG
Brand: CYPRESS
SKU: 160145351-0000-0000-0000

FM18W08-SG - CYPRESS の商品詳細ページです。

２営業日以内に回答いたします

FM18W08-SG の詳細情報

型番	FM18W08-SG
メーカー	CYPRESS
Access Time-Max	80 ns
Additional Feature	DATA RETENTION TIME @ 85 DEGREE CENTIGRADE
Data Retention Time-Min	10
Endurance	1.0E+14 Write/Erase Cycles
JESD-30 Code	R-PDSO-G28
JESD-609 Code	e3
Length	17.9 mm
Memory Density	262144 bit
Memory IC Type	FRAM
Memory Width	8
Moisture Sensitivity Level	2
Number of Functions	1
Number of Terminals	28
Number of Words	32768 words
Number of Words Code	32K
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Organization	32KX8
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP28,.4
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Cel)	260
Power Supplies	3/5 V
Qualification Status	Not Qualified
Seated Height-Max	2.65 mm
Standby Current-Max	5.0E-5 Amp
Standby Voltage-Min	2.7 V
Sub Category	SRAMs
Supply Current-Max	0.012 mA
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	2.7 V
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	YES
Technology	CMOS
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	7.5 mm
