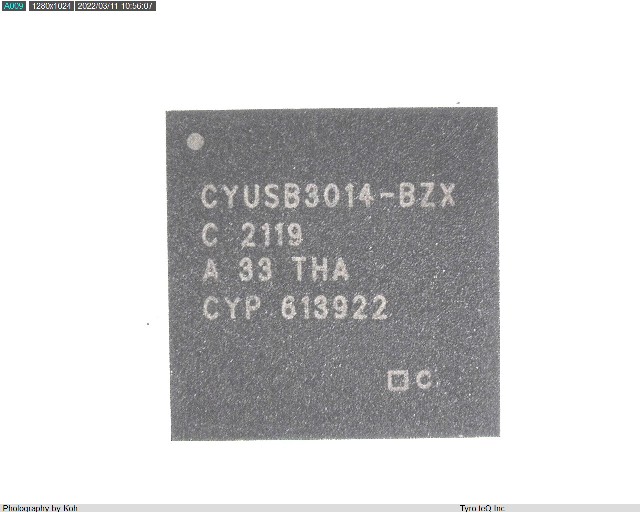

CYUSB3014-BZXC

Name: CYUSB3014-BZXC
Brand: CYPRESS
SKU: 130551885-0000-0000-0000

CYUSB3014-BZXC - CYPRESS の商品詳細ページです。

２営業日以内に回答いたします

CYUSB3014-BZXC の詳細情報

型番	CYUSB3014-BZXC
メーカー	CYPRESS
Additional Feature	8-BIT ADDRESS BUS AVAILABLE BUT NO CLARITY WITH RESPECT TO PINS
Address Bus Width	2
Bus Compatibility	I2C, I2S, SMBUS, SPI, UART, USB
Clock Frequency-Max	19.2 MHz
Data Transfer Rate-Max	375 MBps
Drive Interface Standard	GPIF
External Data Bus Width	32
JESD-30 Code	S-PBGA-B121
JESD-609 Code	e1
Length	10 mm
Moisture Sensitivity Level	3

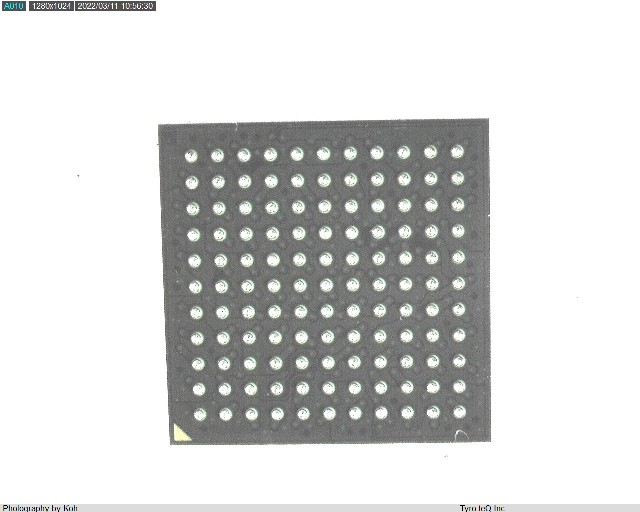

Number of Terminals	121
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	TFBGA
Package Equivalence Code	BGA121,11X11,32
Package Shape	SQUARE
Package Style	GRID ARRAY, THIN PROFILE, FINE PITCH Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	1.2 mm
Supply Current-Max	200 mA
Supply Voltage-Max	1.25 V
Supply Voltage-Min	1.15 V
Supply Voltage-Nom	1.2 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	TIN SILVER COPPER
Terminal Form	BALL
Terminal Pitch	0.8 mm
Terminal Position	BOTTOM
Width	10 mm
uPs/uCs/Peripheral ICs Type	BUS CONTROLLER, UNIVERSAL SERIAL BUS
