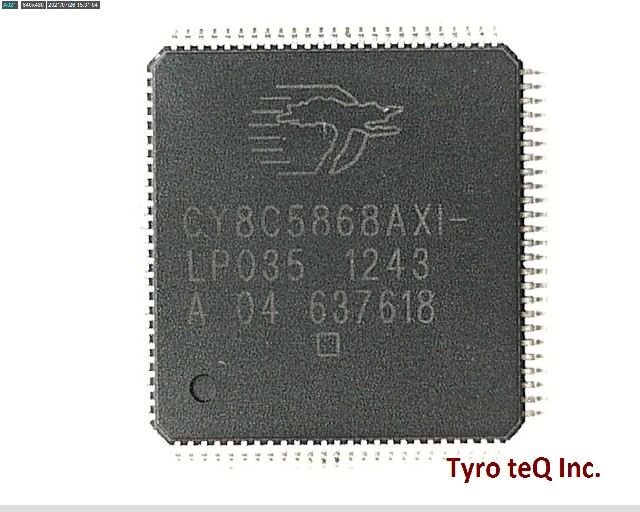

CY8C5868AXI-LP035

Name: CY8C5868AXI-LP035
Brand: CYPRESS
SKU: 130558490-0000-0000-0000

CY8C5868AXI-LP035 - CYPRESS の商品詳細ページです。

２営業日以内に回答いたします

CY8C5868AXI-LP035 の詳細情報

型番	CY8C5868AXI-LP035
メーカー	CYPRESS
Address Bus Width	0
Boundary Scan	YES
Bus Compatibility	I2C; I2S; LIN; PS/2; SPI; UART; USB; CAN; SIO; IDE; SMBUS
Clock Frequency-Max	33 MHz
External Data Bus Width	0
JESD-30 Code	S-PQFP-G100
JESD-609 Code	e4
Length	14 mm
Moisture Sensitivity Level	3
Number of I/O Lines	62
Number of Terminals	100
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	LFQFP
Package Equivalence Code	QFP100,.63SQ,20
Package Shape	SQUARE
Package Style	FLATPACK, LOW PROFILE, FINE PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	2/5 V
Qualification Status	Not Qualified
RAM (words)	32768
ROM Size (bits)	2097152 Bits
Seated Height-Max	1.6 mm
Sub Category	Other uPs/uCs/Peripheral ICs
Supply Current-Max	0.0255 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	1.71 V
Supply Voltage-Nom	1.8 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	NICKEL PALLADIUM GOLD
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	30
UV Erasable	N
Width	14 mm
uPs/uCs/Peripheral ICs Type	MULTIFUNCTION PERIPHERAL
