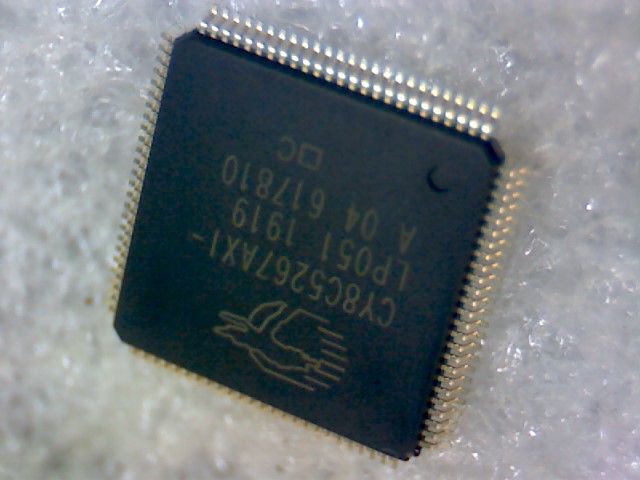

CY8C5267AXI-LP051
1
-
- 個
２営業日以内に回答いたします
CY8C5267AXI-LP051 の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | CY8C5267AXI-LP051 |
|---|---|
| メーカー | CYPRESS |
| Address Bus Width | 0 |
| Boundary Scan | YES |
| Bus Compatibility | I2C; I2S; IDE; LIN; PS/2; SIO; SMBUS; SPI; UART; USB |
| Clock Frequency-Max | 33 MHz |
| External Data Bus Width | 0 |
| JESD-30 Code | S-PQFP-G100 |
| Length | 14 mm |
| Moisture Sensitivity Level | 3 |
| Number of I/O Lines | 38 |
| Number of Terminals | 100 |
| Operating Temperature-Max | 85 Cel |
| Operating Temperature-Min | -40 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | LFQFP |
| Package Equivalence Code | QFP100,.63SQ,20 |
| Package Shape | SQUARE |
| Package Style | FLATPACK, LOW PROFILE, FINE PITCH Meter |
| Peak Reflow Temperature (Cel) | 260 |
| Qualification Status | Not Qualified |
| RAM (words) | 16384 |
| Seated Height-Max | 1.6 mm |
| Supply Current-Max | 30 mA |
| Supply Voltage-Max | 5.5 V |
| Supply Voltage-Min | 1.71 V |
| Supply Voltage-Nom | 1.8 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | PURE TIN |
| Terminal Form | GULL WING |
| Terminal Pitch | 0.5 mm |
| Terminal Position | QUAD |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Width | 14 mm |
| uPs/uCs/Peripheral ICs Type | MULTIFUNCTION PERIPHERAL |
| 会社名称 | Cypress Semiconductor Corporation. |
|---|---|
| 所在地 | 198 Champion Court San Jose, CA 95134 USA |
| URL | http://www.cypress.com/ |
