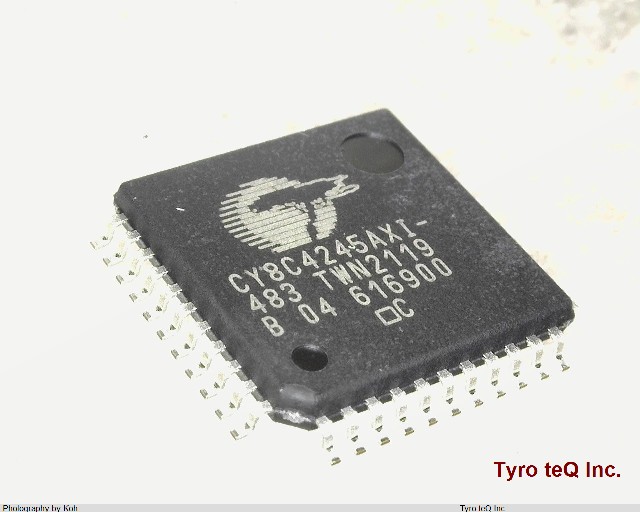

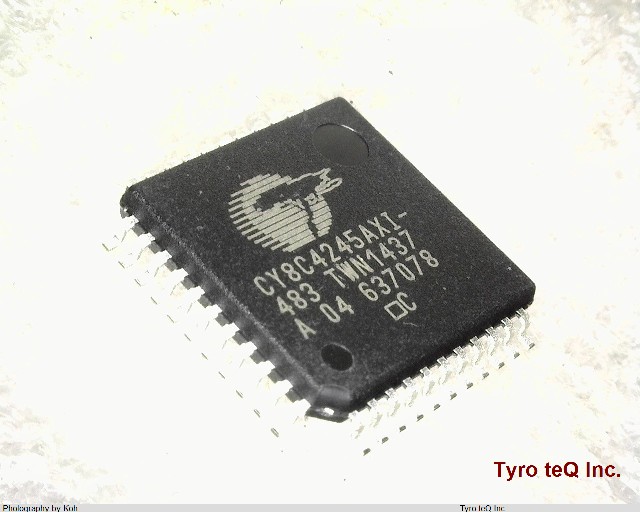

CY8C4245AXI-483

Name: CY8C4245AXI-483
Brand: CYPRESS
SKU: 400060986-0000-0000-0000

CY8C4245AXI-483 - CYPRESS の商品詳細ページです。

２営業日以内に回答いたします

CY8C4245AXI-483 の詳細情報

型番	CY8C4245AXI-483
メーカー	CYPRESS
Boundary Scan	NO
Bus Compatibility	I2C; IDE; IRDA; LIN; SPI; UART
Clock Frequency-Max	48 MHz
JESD-30 Code	S-PQFP-G44
JESD-609 Code	e3
Length	10 mm
Moisture Sensitivity Level	3
Number of I/O Lines	36
Number of Serial I/Os	3
Number of Terminals	44
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	LQFP
Package Equivalence Code	QFP44,.47SQ,32
Package Shape	SQUARE
Package Style	FLATPACK, LOW PROFILE Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
RAM (words)	2048
Seated Height-Max	1.6 mm
Supply Current-Max	13.8 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	1.71 V
Supply Voltage-Nom	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.8 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	20
Width	10 mm
uPs/uCs/Peripheral ICs Type	MULTIFUNCTION PERIPHERAL
