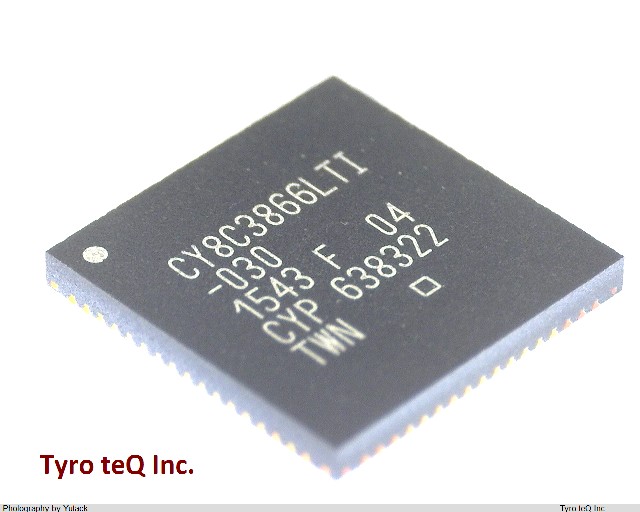

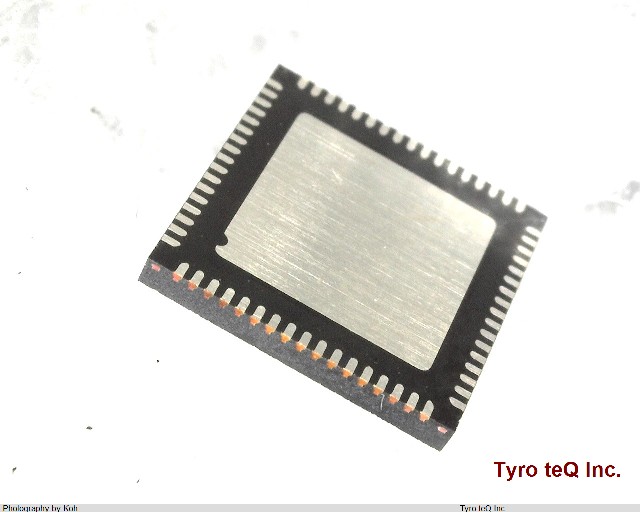

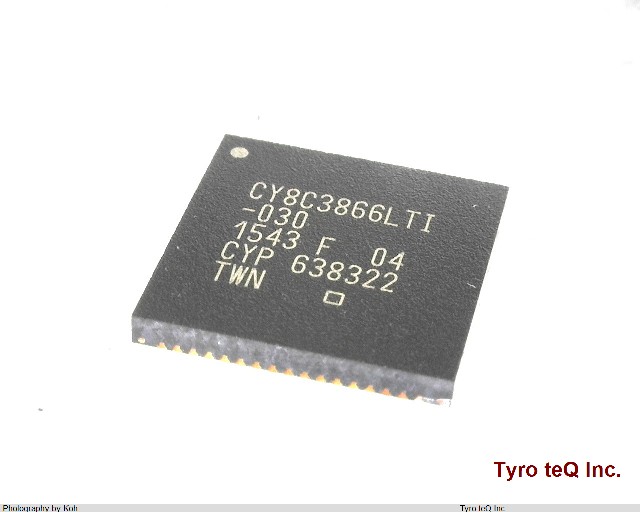

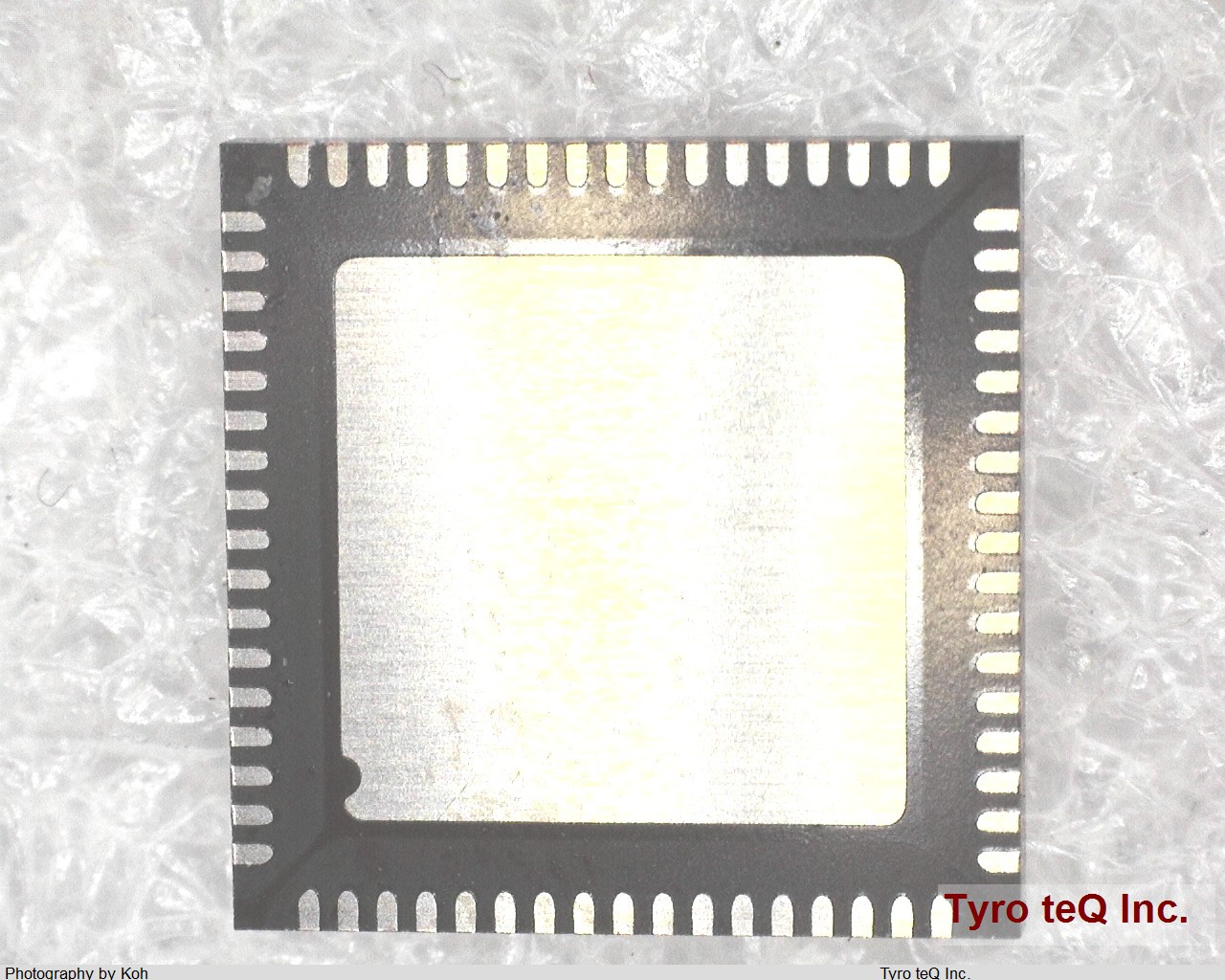

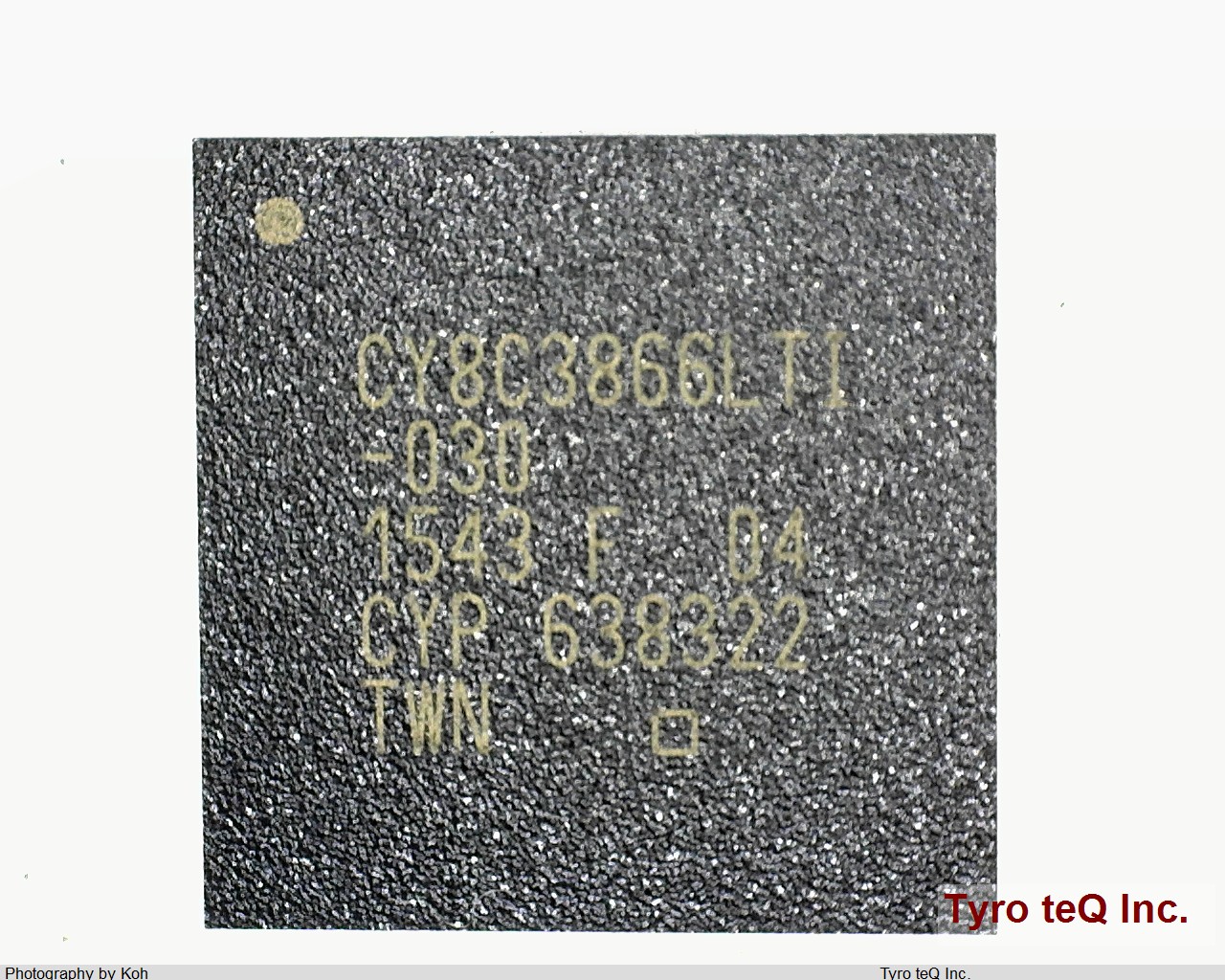

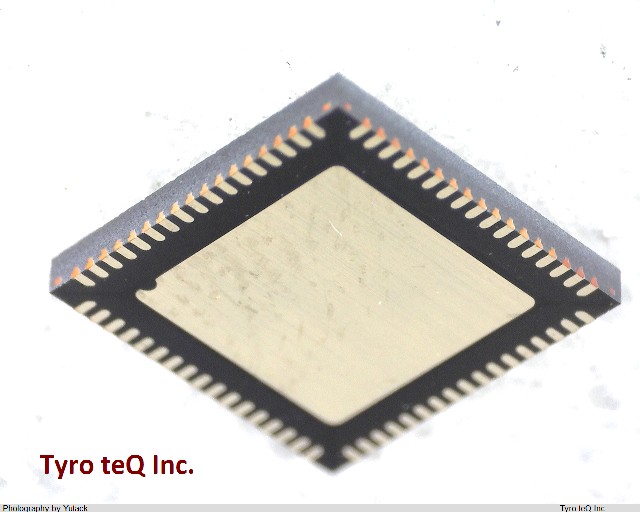

CY8C3866LTI-030

Name: CY8C3866LTI-030
Brand: CYPRESS
SKU: 130424198-0000-0000-0000

CY8C3866LTI-030 - CYPRESS の商品詳細ページです。

２営業日以内に回答いたします

CY8C3866LTI-030 の詳細情報

型番	CY8C3866LTI-030
メーカー	CYPRESS
Address Bus Width	0
Boundary Scan	YES
Bus Compatibility	I2C; USB; PS/2; 8051
Clock Frequency-Max	67 MHz
External Data Bus Width	0
JESD-30 Code	S-XQCC-N68
JESD-609 Code	e4
Length	8 mm
Moisture Sensitivity Level	3
Number of I/O Lines	48
Number of Terminals	68
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	UNSPECIFIED
Package Code	HVQCCN
Package Equivalence Code	LCC68,.3SQ,40
Package Shape	SQUARE
Package Style	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	2/5 V
Qualification Status	Not Qualified
RAM (words)	4096
ROM Size (bits)	65536 Bits
Seated Height-Max	1 mm
Sub Category	Other uPs/uCs/Peripheral ICs
Supply Voltage-Max	5.5 V
Supply Voltage-Min	1.71 V
Supply Voltage-Nom	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	NICKEL PALLADIUM GOLD
Terminal Form	NO LEAD
Terminal Pitch	0.4 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	30
UV Erasable	N
Width	8 mm
