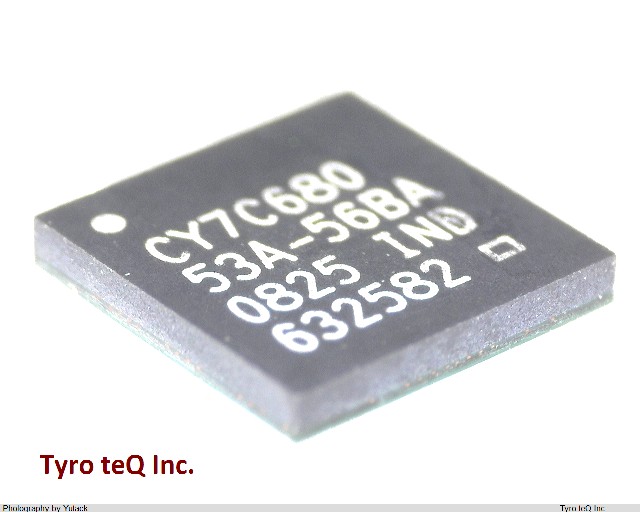

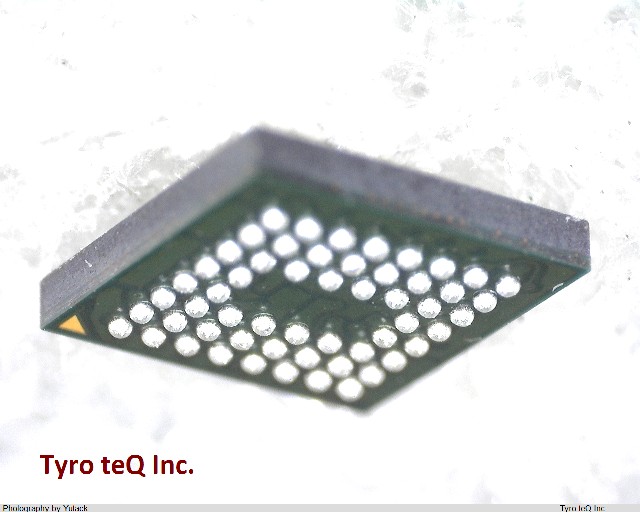

CY7C6805356BAXI データシート

Name: CY7C6805356BAXI
Brand: CYPRESS
SKU: 130287253-0000-0000-0000

CY7C6805356BAXI - CYPRESS の商品詳細ページです。

２営業日以内に回答いたします

CY7C6805356BAXI の詳細情報

型番	CY7C6805356BAXI
メーカー	CYPRESS
データシート
ADC Channels	NO
Additional Feature	ALSO REQUIRES 3.3V SUPPLY
Address Bus Width	16
Bit Size	8
CPU Family	8051
Clock Frequency-Max	24 MHz
DAC Channels	NO
DMA Channels	NO
External Data Bus Width	8
JESD-30 Code	S-PBGA-B56
JESD-609 Code	e1
Length	5 mm
Moisture Sensitivity Level	3
Number of I/O Lines	24
Number of Terminals	56
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
PWM Channels	NO
Package Body Material	PLASTIC/EPOXY
Package Code	FBGA
Package Equivalence Code	BGA56,8X8,20
Package Shape	SQUARE
Package Style	GRID ARRAY, FINE PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	1.8,3.3 V
Qualification Status	Not Qualified
RAM (bytes)	16384
Seated Height-Max	1 mm
Speed	48 rpm
Sub Category	Microcontrollers
Supply Voltage-Max	1.89 V
Supply Voltage-Min	1.71 V
Supply Voltage-Nom	1.8 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN SILVER COPPER
Terminal Form	BALL
Terminal Pitch	0.5 mm
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	40
Width	5 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
