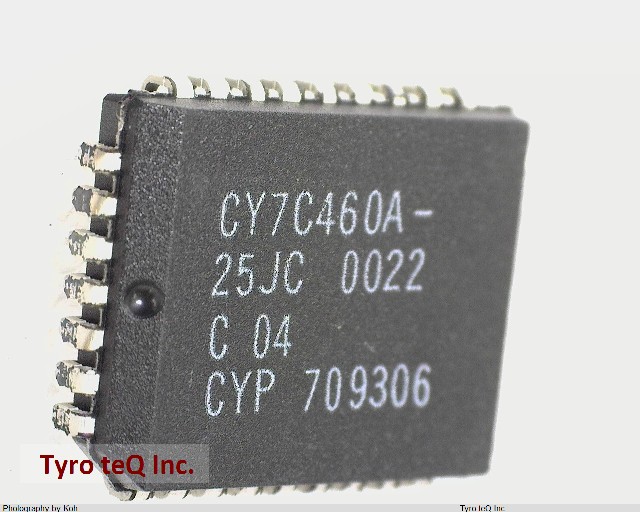

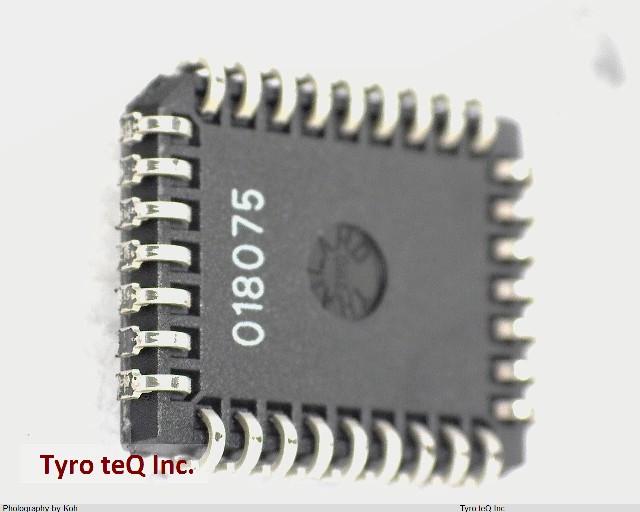

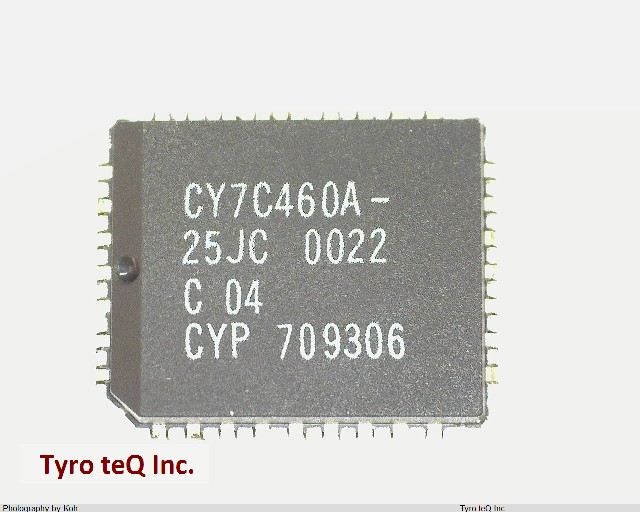

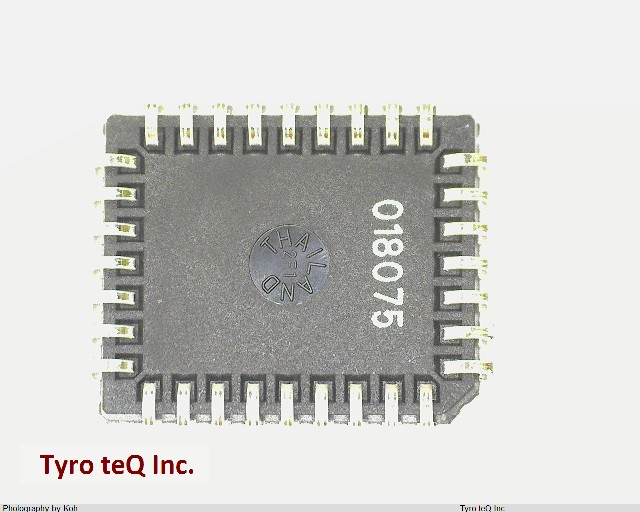

CY7C460A-25JC
1
-
- 個
２営業日以内に回答いたします
CY7C460A-25JC の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | CY7C460A-25JC |
|---|---|
| メーカー | CYPRESS |
| Access Time-Max | 25 ns |
| Additional Feature | RETRANSMIT |
| Clock Frequency-Max (fCLK) | 28.5 MHz |
| Cycle Time | 35 ns |
| JESD-30 Code | R-PQCC-J32 |
| JESD-609 Code | e0 |
| Length | 13.97 mm |
| Memory Density | 73728 bit |
| Memory IC Type | OTHER FIFO |
| Memory Width | 9 |
| Number of Functions | 1 |
| Number of Terminals | 32 |
| Number of Words | 8192 words |
| Number of Words Code | 8K |
| Operating Mode | ASYNCHRONOUS |
| Operating Temperature-Max | 70 Cel |
| Operating Temperature-Min | 0 Cel |
| Organization | 8KX9 |
| Output Characteristics | 3-STATE |
| Output Enable | NO |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | QCCJ |
| Package Equivalence Code | LDCC32,.5X.6 |
| Package Shape | RECTANGULAR |
| Package Style | CHIP CARRIER Meter |
| Parallel/Serial | PARALLEL |
| Power Supplies | 5 V |
| Qualification Status | Not Qualified |
| Seated Height-Max | 3.55 mm |
| Standby Current-Max | 0.002 Amp |
| Sub Category | FIFOs |
| Supply Current-Max | 0.06 mA |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | TIN LEAD |
| Terminal Form | J BEND |
| Terminal Pitch | 1.27 mm |
| Terminal Position | QUAD |
| Width | 11.43 mm |
| 会社名称 | Cypress Semiconductor Corporation. |
|---|---|
| 所在地 | 198 Champion Court San Jose, CA 95134 USA |
| URL | http://www.cypress.com/ |
