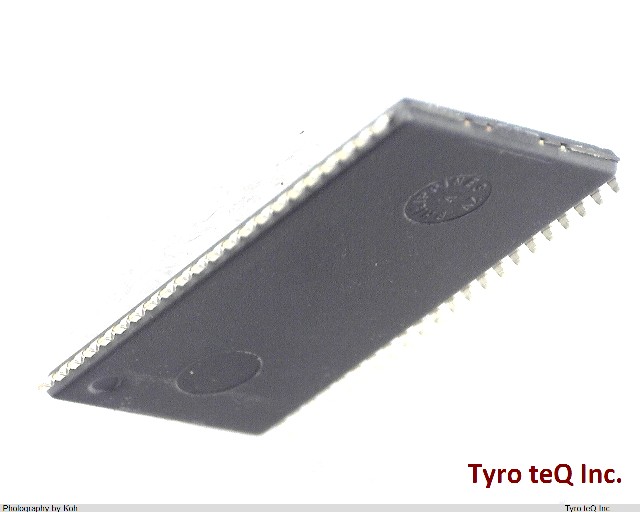

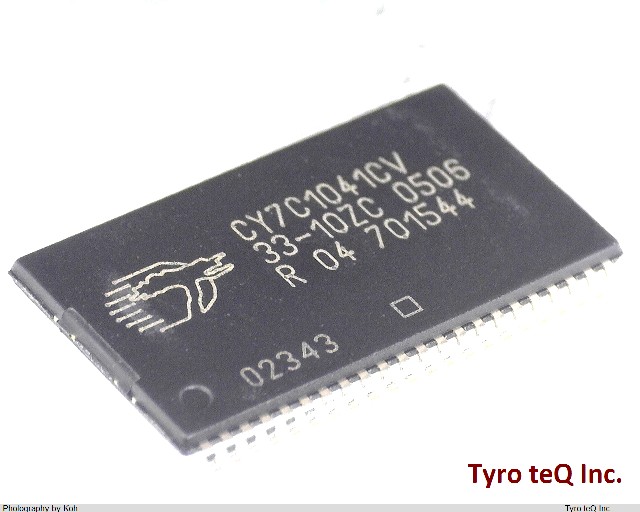

CY7C1041CV33-10ZC

Name: CY7C1041CV33-10ZC
Brand: CYPRESS
SKU: 130012929-0000-0000-0000

CY7C1041CV33-10ZC - CYPRESS の商品詳細ページです。

２営業日以内に回答いたします

CY7C1041CV33-10ZC の詳細情報

型番	CY7C1041CV33-10ZC
メーカー	CYPRESS
Access Time-Max	10 ns
I/O Type	COMMON
JESD-30 Code	R-PDSO-G44
JESD-609 Code	e0
Length	18.415 mm
Memory Density	4194304 bit
Memory IC Type	STANDARD SRAM
Memory Width	16
Number of Functions	1
Number of Terminals	44
Number of Words	262144 words
Number of Words Code	256K
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Organization	256KX16
Output Characteristics	3-STATE
Package Body Material	PLASTIC/EPOXY
Package Code	TSOP2
Package Equivalence Code	TSOP44,.46,32
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE Meter
Parallel/Serial	PARALLEL
Power Supplies	3.3 V
Qualification Status	Not Qualified
Seated Height-Max	1.194 mm
Standby Current-Max	0.01 Amp
Standby Voltage-Min	3 V
Sub Category	SRAMs
Supply Current-Max	0.09 mA
Supply Voltage-Max (Vsup)	3.6 V
Supply Voltage-Min (Vsup)	3 V
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	NICKEL PALLADIUM GOLD
Terminal Form	GULL WING
Terminal Pitch	0.8 mm
Terminal Position	DUAL
Width	10.16 mm
