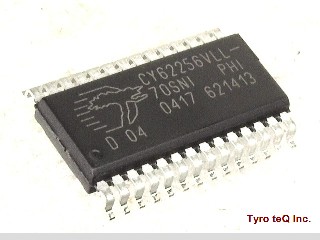

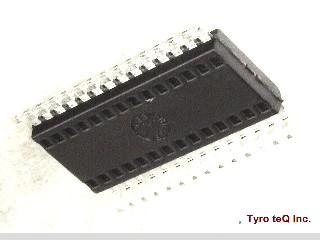

CY62256VLL-70SNI
データシート
1
-
- 個
２営業日以内に回答いたします
CY62256VLL-70SNI の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | CY62256VLL-70SNI |
|---|---|
| メーカー | CYPRESS |
| データシート |  |
| Access Time-Max | 70 ns |
| Additional Feature | AUTOMATIC POWER-DOWN |
| I/O Type | COMMON |
| JESD-30 Code | R-PDSO-G28 |
| JESD-609 Code | e0 |
| Length | 17.9324 mm |
| Memory Density | 262144 bit |
| Memory IC Type | STANDARD SRAM |
| Memory Width | 8 |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 1 |
| Number of Terminals | 28 |
| Number of Words | 32768 words |
| Number of Words Code | 32K |
| Operating Mode | ASYNCHRONOUS |
| Operating Temperature-Max | 85 Cel |
| Operating Temperature-Min | -40 Cel |
| Organization | 32KX8 |
| Output Characteristics | 3-STATE |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOP |
| Package Equivalence Code | SOP28,.5 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE Meter |
| Parallel/Serial | PARALLEL |
| Power Supplies | 3/3.3 V |
| Qualification Status | Not Qualified |
| Seated Height-Max | 2.794 mm |
| Standby Voltage-Min | 1.4 V |
| Sub Category | SRAMs |
| Supply Current-Max | 0.03 mA |
| Supply Voltage-Max (Vsup) | 3.6 V |
| Supply Voltage-Min (Vsup) | 2.7 V |
| Supply Voltage-Nom (Vsup) | 3 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | TIN LEAD |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |
| Width | 7.5057 mm |
| 会社名称 | Cypress Semiconductor Corporation. |
|---|---|
| 所在地 | 198 Champion Court San Jose, CA 95134 USA |
| URL | http://www.cypress.com/ |
