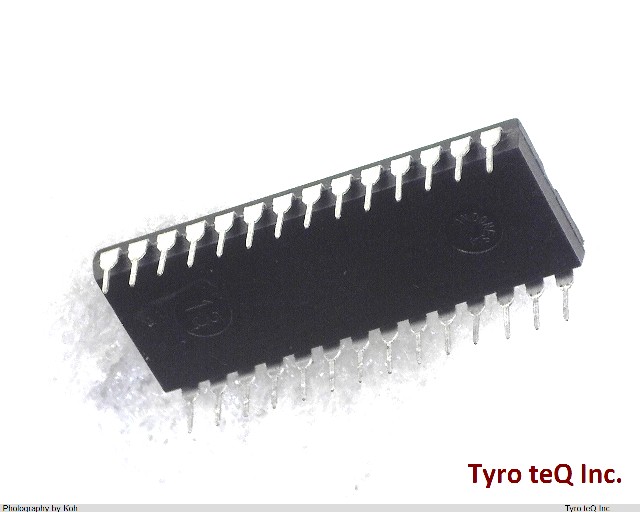

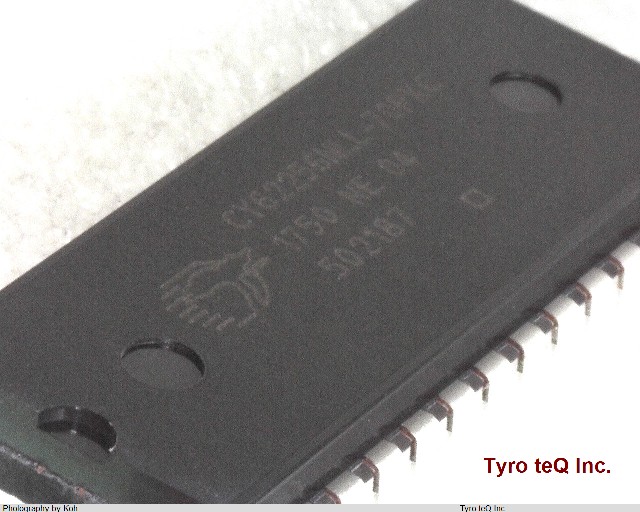

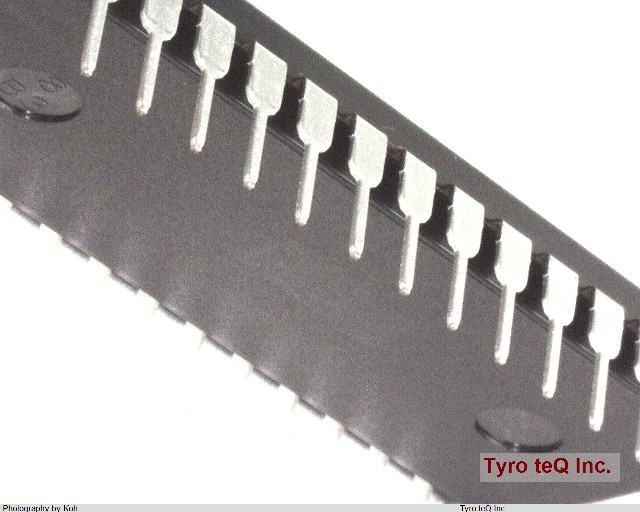

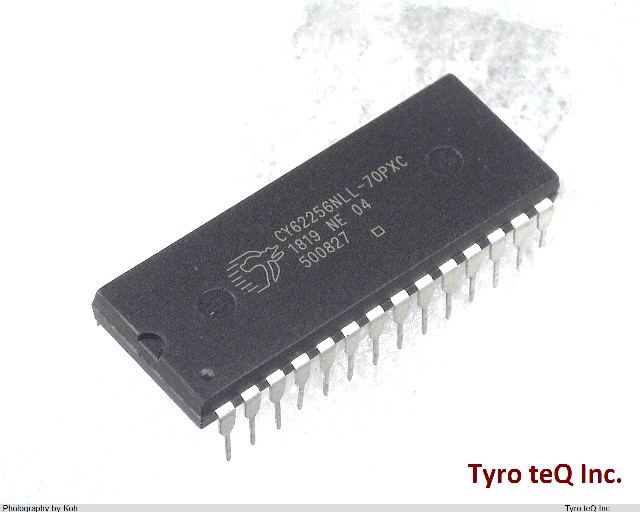

CY62256NLL-70PXC データシート

Name: CY62256NLL-70PXC
Brand: CYPRESS
SKU: 130012690-0000-0000-0000

CY62256NLL-70PXC - CYPRESS の商品詳細ページです。

２営業日以内に回答いたします

CY62256NLL-70PXC の詳細情報

型番	CY62256NLL-70PXC
メーカー	CYPRESS
データシート
Access Time-Max	70 ns
I/O Type	COMMON
JESD-30 Code	R-PDIP-T28
JESD-609 Code	e4
Length	36.322 mm
Memory Density	262144 bit
Memory IC Type	STANDARD SRAM
Memory Width	8
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	28
Number of Words	32768 words
Number of Words Code	32K
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Organization	32KX8
Output Characteristics	3-STATE
Output Enable	YES
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP28,.6
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Cel)	260
Power Supplies	5 V
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Standby Current-Max	5.0E-6 Amp
Standby Voltage-Min	2 V
Sub Category	SRAMs
Supply Current-Max	0.05 mA
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	40
Width	15.24 mm
