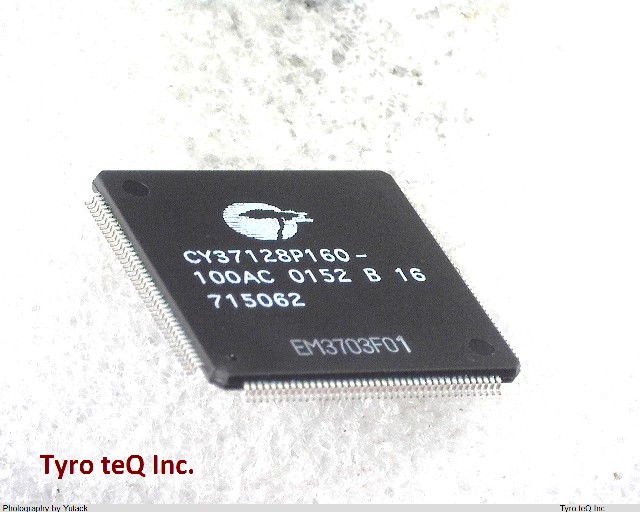

CY37128P160-100AC データシート

Name: CY37128P160-100AC
Brand: CYPRESS
SKU: 130035584-0000-0000-0000

CY37128P160-100AC - CYPRESS の商品詳細ページです。

２営業日以内に回答いたします

CY37128P160-100AC の詳細情報

型番	CY37128P160-100AC
メーカー	CYPRESS
データシート
Additional Feature	128 MACROCELLS; CONFIGURABLE I/O OPERATION WITH 3.3V OR 5V
Clock Frequency-Max	80 MHz
In-System Programmable	YES
JESD-30 Code	S-PQFP-G160
JESD-609 Code	e0
JTAG BST	YES
Length	24 mm
Number of Dedicated Inputs	1
Number of I/O Lines	133
Number of Macro Cells	128
Number of Terminals	160
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Organization	1 DEDICATED INPUTS, 133 I/O
Output Function	MACROCELL
Package Body Material	PLASTIC/EPOXY
Package Code	LFQFP
Package Equivalence Code	QFP160,1.0SQ,20
Package Shape	SQUARE
Package Style	FLATPACK, LOW PROFILE, FINE PITCH Meter
Power Supplies	3.3/5 V
Programmable Logic Type	EE PLD
Propagation Delay	12 ns
Qualification Status	Not Qualified
Seated Height-Max	1.6 mm
Sub Category	Programmable Logic Devices
Supply Voltage-Max	5.25 V
Supply Voltage-Min	4.75 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	TIN LEAD
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Width	24 mm
