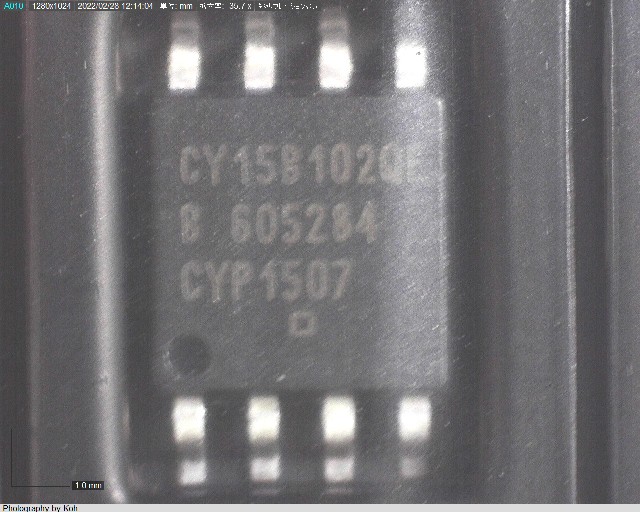

CY15B102Q-SXE

Name: CY15B102Q-SXE
Brand: CYPRESS
SKU: 130588051-0000-0000-0000

CY15B102Q-SXE - CYPRESS の商品詳細ページです。

２営業日以内に回答いたします

CY15B102Q-SXE の詳細情報

型番	CY15B102Q-SXE
メーカー	CYPRESS
JESD-30 Code	R-PDSO-G8
Length	5.28 mm
Memory Density	2097152 bit
Memory IC Type	MEMORY CIRCUIT
Memory Width	8
Moisture Sensitivity Level	3
Number of Functions	1
Number of Terminals	8
Number of Words	262144 words
Number of Words Code	256K
Operating Mode	SYNCHRONOUS
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Organization	256KX8
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	2.5/3.3 V
Qualification Status	Not Qualified
Screening Level	AEC-Q100
Seated Height-Max	2.03 mm
Standby Current-Max	0.00075 Amp
Sub Category	SRAMs
Supply Current-Max	0.005 mA
Supply Voltage-Max (Vsup)	3.6 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	AUTOMOTIVE
Terminal Finish	PURE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	5.23 mm
