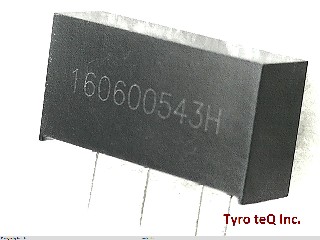

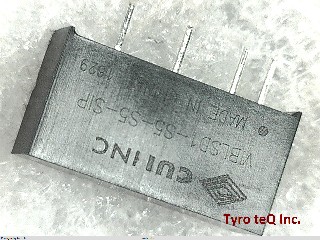

VIBLSD1-S5-S5-SIP

Name: VIBLSD1-S5-S5-SIP
Brand: CUI
SKU: 320083060-0000-0000-0000

VIBLSD1-S5-S5-SIP - CUI の商品詳細ページです。

12時間54分後以内に見積もり依頼を頂ければ、
04月22日(月) 9:00 までに見積もり回答いたします。

検討リストに追加する

VIBLSD1-S5-S5-SIP の詳細情報

型番	VIBLSD1-S5-S5-SIP
メーカー	CUI
Analog IC - Other Type	DC-DC REGULATED POWER SUPPLY MODULE
Control Mode	VOLTAGE-MODE
Efficiency (Main Output)	67 %
Height	10.25 mm
Input Voltage-Max	5.25 V
Input Voltage-Min	4.75 V
Input Voltage-Nom	5 V
JESD-30 Code	R-PSMA-P4
Length	19.6 mm
Line Regulation-Max	0.25 %
Load Regulation-Max	1 %
Number of Functions	1
Number of Outputs	1
Number of Terminals	4
Operating Temperature-Max	71 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	0.2 A
Output Voltage-Max	5.15 V
Output Voltage-Min	4.85 V
Output Voltage-Nom	5 V
Package Body Material	PLASTIC/EPOXY
Package Code	SMA
Package Shape	RECTANGULAR
Package Style	MICROELECTRONIC ASSEMBLY Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Protection(s)	SHORT CIRCUIT V
Ripple Voltage (Main Out)	0.00707 Vrms
Seated Height-Max	10.25 mm
Surface Mount	NO
Switching Frequency-Max	300 kHz
Technology	HYBRID
Temperature Grade	OTHER
Terminal Form	PIN/PEG
Terminal Pitch	2.54 mm
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Total Power Output-Max	1 W
Trim/Adjustable Output	NO V
Width	6 mm
