PJ-019
1
-
- 個
２営業日以内に回答いたします
PJ-019 の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | PJ-019 |
|---|---|
| メーカー | CUI |
| Body Breadth | 0.453 inch |
| Body Depth | 0.571 inch |
| Body Length | 0.394 inch |
| Body/Shell Style | JACK |

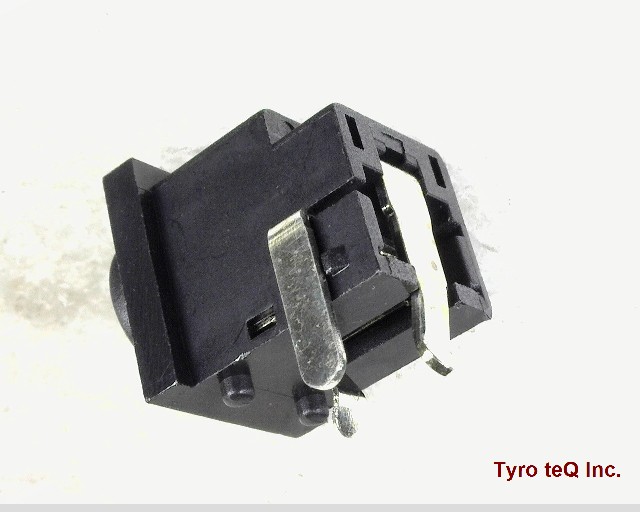

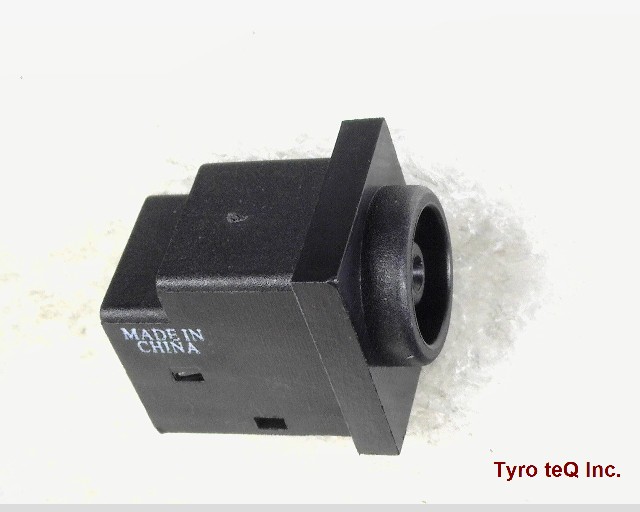

| Connector Type | DC POWER JACK |
| Contact Finish - Mating | GOLD OVER NICKEL |
| Contact Finish - Termination | GOLD OVER NICKEL |
| Contact Gender | FEMALE |
| Contact Material | PHOSPHOR BRONZE |
| DIN Conformance | NO |
| Empty Shell | NO |
| Filter Feature | NO |
| IEC Conformance | NO |
| Insulator Material | GLASS FILLED POLYBUTYLENE TEREPHTHALATE |
| JESD-609 Code | e4 |
| MIL Conformance | NO |
| Mixed Contacts | NO |
| Mounting Style | RIGHT ANGLE |
| Mounting Type | BOARD |
| Operating Temperature-Max | 85 Cel |
| Operating Temperature-Min | -25 Cel |
| Option | GENERAL PURPOSE |
| Pin Diameter | 1 mm |
| Rated Current (Power) | 3 A |
| Rated Voltage | 24 V |
| Reference Standard | UL |
| Termination Type | SOLDER |
| Total Number of Contacts | 2 |
| UL Flammability Code | 94V-0 |
| 会社名称 | CUI Inc |
|---|---|
| 設立 | 1989 |
| 所在地 | 20050 SW 112th Avenue Tualatin, OR 97062, USA |
| URL | http://www.cui.com/ |
