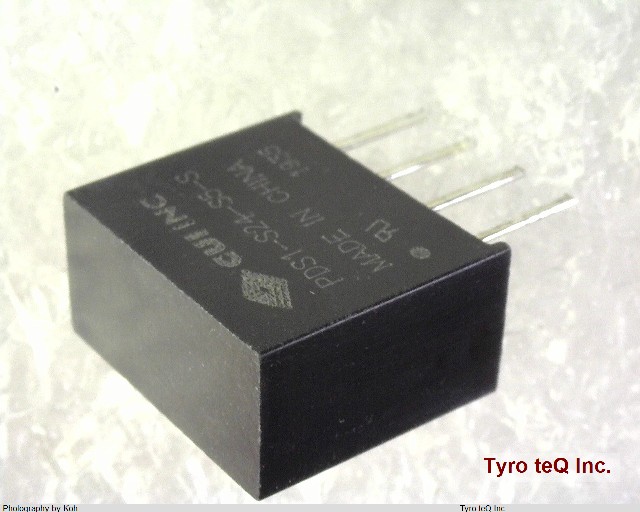

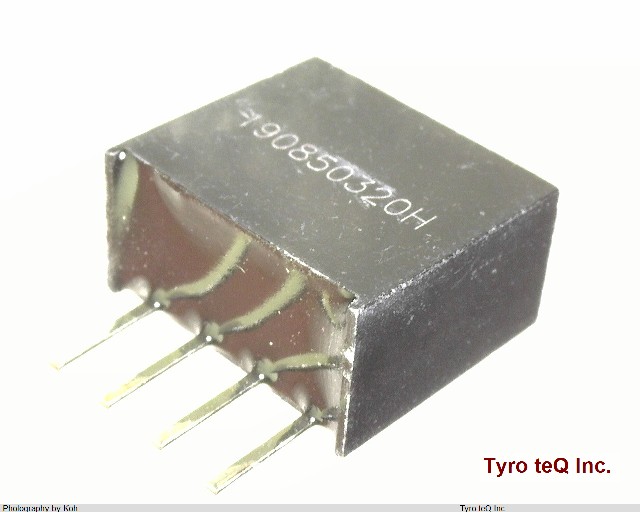

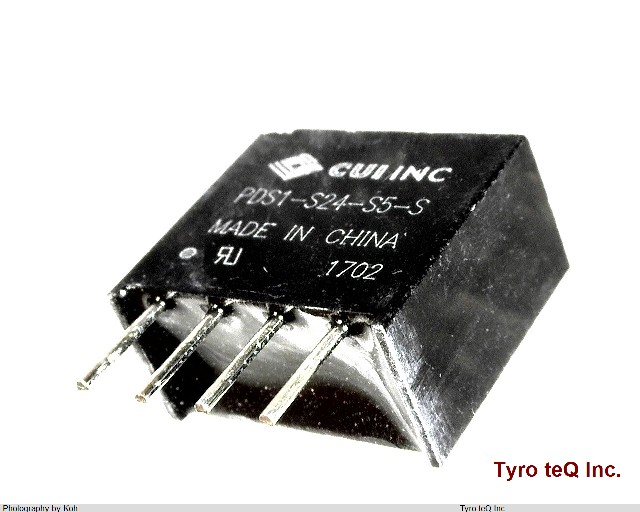

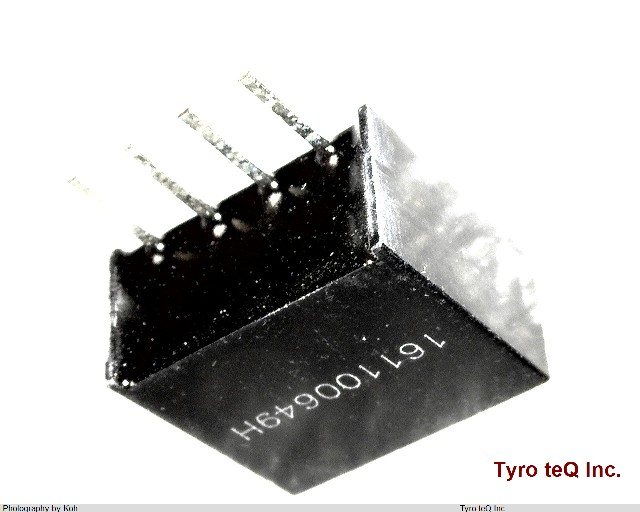

PDS1-S-24-S5-S

Name: PDS1-S-24-S5-S
Brand: CUI
SKU: 400058388-0000-0000-0000

PDS1-S-24-S5-S - CUI の商品詳細ページです。

２営業日以内に回答いたします

PDS1-S-24-S5-S の詳細情報

型番	PDS1-S-24-S5-S
メーカー	CUI
Analog IC - Other Type	DC-DC UNREGULATED POWER SUPPLY MODULE
Input Voltage-Max	26.4 V
Input Voltage-Min	21.6 V
Input Voltage-Nom	24 V
JESD-30 Code	R-PSMA-T4
Length	11.6 mm
Number of Functions	1
Number of Outputs	1
Number of Terminals	4
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Voltage-Nom	5 V
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	MICROELECTRONIC ASSEMBLY Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Seated Height-Max	10.35 mm
Surface Mount	NO
Technology	HYBRID
Temperature Grade	INDUSTRIAL
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Total Power Output-Max	1 W
Trim/Adjustable Output	NO V
Width	6 mm
