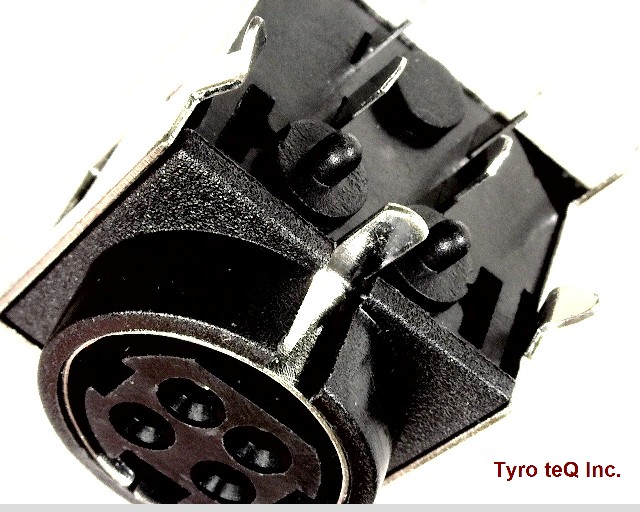

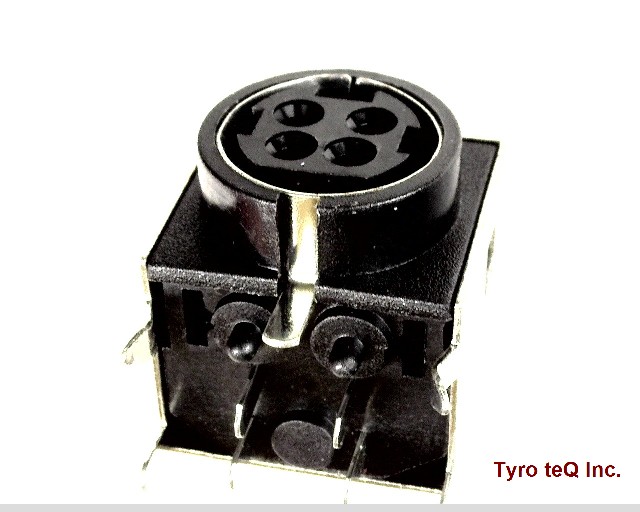

PD-40S
1
-
- 個
２営業日以内に回答いたします
PD-40S の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | PD-40S |
|---|---|
| メーカー | CUI |
| Additional Feature | RATED CURRENT(POWER): 7.5 |
| Board Mounting Option | SOLDER HOLDING FLANGE |
| Body Breadth | 0.591 inch |
| Body Depth | 0.685 inch |
| Body Length | 0.63 inch |
| Body/Shell Style | JACK |
| Connector Type | CIRCULAR DIN CONNECTOR |
| Contact Finish - Mating | NOT SPECIFIED |
| Contact Finish - Termination | TIN |
| Contact Gender | FEMALE |
| Contact Material | BRASS |
| Contact Resistance | 30 mohm |
| Contact Style | RND PIN-SKT |
| DIN Conformance | YES |
| Dielectric Withstanding Voltage | 250VAC V |
| Durability | 1000 Cycles |
| EMI Shielded | YES |
| IEC Conformance | NO |
| Insertion Force-Max | 63.7 N |
| Insulation Resistance | 50000000 ohm |
| Insulator Color | BLACK |
| Insulator Material | POLYBUTYLENE TEREPHTHALATE |
| JESD-609 Code | e3 |
| MIL Conformance | NO |
| Mounting Option 1 | LOCKING |
| Mounting Style | RIGHT ANGLE |
| Mounting Type | BOARD |
| Number of Ports | 1 |
| Operating Temperature-Max | 85 Cel |
| Operating Temperature-Min | -40 Cel |
| Option | GENERAL PURPOSE |
| Polarization Key | POLAR PIN POSITION |
| Rated Current (Signal) | 7.5 A |
| Reference Standard | UL |
| Reliability | COMMERCIAL |
| Shell Finish | TIN |
| Shell Material | STEEL |
| Sub Category | DIN Connectors |
| Terminal Length | 0.138 inch |
| Termination Type | SOLDER |
| Total Number of Contacts | 4 |
| 会社名称 | CUI Inc |
|---|---|
| 設立 | 1989 |
| 所在地 | 20050 SW 112th Avenue Tualatin, OR 97062, USA |
| URL | http://www.cui.com/ |
